Product Details
Product Description
Product Description

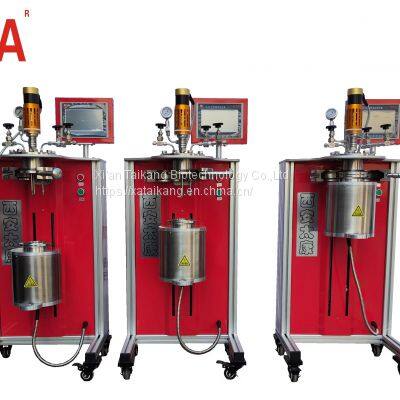

Chemical High Pressure Reactor,Stirring Autoclave,Stainless Steel Autoclave,Reaction Kettle Reactor,mixer,reactor,stainless steel tank,chemical equipment,pressure vessel,high pressure reactor,Mixing Reactor,Lined Hydrothermal Synthesis Reactor,Hydrogenation Reactor,Lab Reactor,Chemical High Pressure Reactor ,Autoclave Reactor ,Stainless Steel Reactor,Tank Reactor.
Description:
Functional use: It is necessary to measure pressure, temperature, speed, and add inert gas protection at the same time, stabilize pressure, and realize online sampling or online feeding when this product is used for chemical, chemical, ultra-high temperature, high pressure, and negative pressure synthesis reactions or catalytic reactions. It is utilized to stir reactions in a variety of flammable, explosive, highly poisonous, priceless, and other chemical media under conditions of The best possible leak-free reaction apparatus for reactions including vulcanization, fluorination, hydrogenation, and others. It offers programmable temperature control and super magnetic stirring capabilities.
Examples of applications include the hydrothermal synthesis of single crystals, the reduction of CO2, the reduction of CO2 to methanol, the reduction of CO2 to methane CH4, the reduction and degradation of NOx, and the high-pressure photocatalytic degradation of formaldehyde. the homogeneous process, the supercritical carbon dioxide reaction, the Fischer-Tropsch reaction, the hydrogenation reaction, the polymerization reaction, etc.
Parameters:
| Main technical parameters of the reactor |
Model
| JLGF-5000
| Volume
| 5000ml
|
Working Pressure
| ≤12MPa
| Design pressure
| 16MPa
|
Working Temperature
| ≤400℃
| Design temperature
| 450℃
|
kettle body material
| Titanium
| Cooling coil
| No（Options） |
Sealing methods
| Magnetic coupling static seal
| Lifting method
| Stepper motor drive, automatic lift
|
Paddle form
| Propeller stirring paddle, two-blade stirring |
Opening and closing type
| KF quick-screw one-button opening and closing
| Magnetic coupled condenser
| Yes☑ No□
|
Heating methods
| Large surrounding copper module electric heating (dual control mode), power: 2.5KW |
| Insulation methods | External insulation of the kettle cavity,the insulation cover is water-resistant,not to easy rust,and has excellent thermal insulation |
Open methods
| Kettle cover and kettle body separation type,automatic lift opening and closing |
Kettle Cover opening
| 7ports,respectively for stirring,temperature measurement ,pressure display,Safety pressure relief,exhaust,air intake,overpressure,relief pressure12Mpa |
| The technical parameters of control system |
Instrument model spec
| 7-inch touch true color screen control, PID multi-stage temperature program control
|
Motor type
| 220VAC☑ Three-phase explosion- proof□
| Motor power
| 100W
|
Rotate Speed
| 0-1000rpm Frequency
| Torque
| 0.5-10Nm
|
Temperature Sensor mode
| K1000 thermocouple
| Bottom tube
| Close to the bottom of kettle,with a 7um filter
|
| Time and speed and pressure display setting:yes☑ No□ |
Heating regulation method
| Manual adjustment+Computer adjustment+Intellitent program、 temperature control
|
Heat-up Speed
| ≤5℃/Miniute
|
>>
