Heavy Duty Conventional Universal Lathe Machine Price with Between Centers 1m 1.5m 2m 3m Bore 80mm 105mm Optional Sp2121

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)
High Quality Torno Gap Bed Metal Lathe Machine Price Heavy duty conventional universal lathe machine price with between centers 1M 1.5M 2M 3M bore 80mm 105mm optional SP2121
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
2022 Best Quality !! 6251 6256 New Factory Equipment Horizontal Turning Lathe Machine SP2121 Bore 80mm 105mm Distance 1000mm 1500mm 2000mm 3000mm 7.5kw
Quick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000/3000mm
Swing over bed: 510/560mm
Swing over gap: 735/785mm
Spindle bore: 80/105mm
Description:

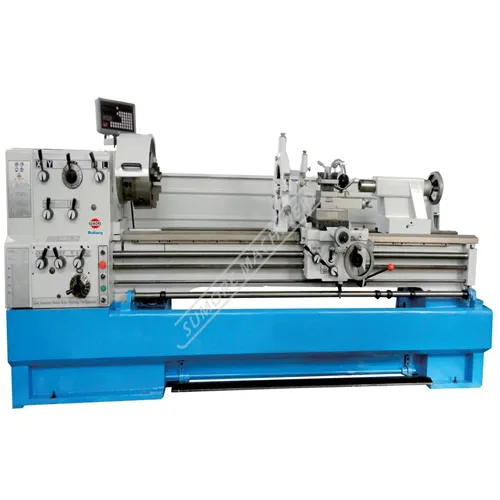

SP2121 engine lathe machine can be with spindle speed 12 steps or variable speed. It is an affordable universal lathe machine. This manual lathe machine could be 80mm or 105mm spindle bore. Now we have developed new specification of lathe machine with automatic lubrication system. The main features/Advantage is as below:
The spinlde bore is supported with precision roller bearings Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. An overload safety device is designed on the apron. Carriage rapid feed with clutch is available. Easy operating speed change levers
Product Parameters

Model	SP2121-I	SP2121-II
Swing over bed	510	560mm
Swing over cross slide	305 mm	355 mm
Swing in gap	735	785mm
Length of gap	170mm
Distance between center	1000/1500/2000/3000mm
Center height	255 mm	280 mm
Width of bed	350mm
Spindle nose	D1-8
Spindle bore:	80/105mm
Taper of spindle bore	No.7 Morse
Range of spindle speed	12 changes 25-1000rpm
Max. travel of compund rest	130mm
Max travel of cross slide	316mm
Leadscrew pitch	6mm or 4 TPI
Max. section of tool	25x25mm
Longitudinal feeds range	32kinds 0.059-1.646mm/rev
Cross feeds range	42kinds 0.020-0.573mm
Metric threads range	47 kinds 0.2-14mm
Inch threads range	60kinds 2-112TPI
Diametrical pitches range	50 kinds 4-112DP
Module pitches range	34kinds 0.1-7MP
Cross adjustment	± 13mm
Quill diameter	75mm
Quill travel	180mm
Quill taper	MT5
Power of coolant pump	0.1kw (1/8HP), 3PH
Power of main motor:	7.5KW (10HP), 3PH
Overall dimension	2350/2850/3350/4350x1150x1500mm
Packing size	2400/2900/3400/4425x1150x1600mm
Net weight	2040/2370/2720/3430kgs
Gross weight	2400/2750/3150/4000kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE certificate . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
