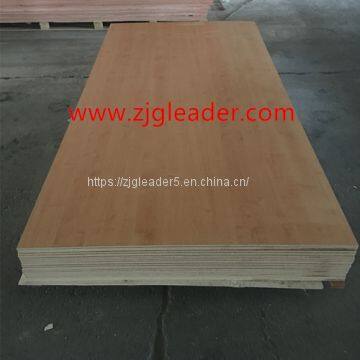

Compact Laminate Board-Toliet Partition Board (1220*2440*12MM)

Product Details

Product Description

Product Description
Specification:
Size: 4 x 8' (1, 220 x 2, 440mm), 4 x 6' (1220 x 1, 830mm)
Thickness:
Plain HPL: 0.5mm~1.5mm.
Postforming HPL: 0.5mm~0.6mm.
Compact: 1.0mm~21mm.
Metallic HPL: 0.7mm~1.0mm

Normal Size:	1220mm×2440mm
Max Width:	1220mm
Max Length:	3000mm
Thickness Range:	3-20mm
Availiable color:	White,grey,green,red and pink
Fireproof	A grade (GB8624)
Density	0.96-1.03g/cm3 (GB/T7019-1997)
Intensity of bending resistance when dry	18Mpa (GB/T7019-1997)
Intensity of bending resistance when moisture-saturated condition	22Mpa (GB/T7019-1997)
The rate of deformation when pick up the moisture	0.26% (GA160-1997)
The shrinking rate when heated	1.0% (GA160-1997)
Water permeability	There is no drop of water to emerge in the back (CNS 13778)
Impact resistance	No carck,strip and run through (CNS 13778)
Thermal resistance	1.14m2K/W (GB/T13475-92)
Sound insulation	>44db (GBJ121-88)
Security	100% no asbestos

Color:
Solid color, abstract system, wood grain, metals system. More than 400 colors for choosen.
Features:
1) Finished via impregnating the decorative paper and super kraft paper in melamine, drying and high temperature and pressure.
2) Outstanding resistance to abrasion, high temperature, dirty, shocking, cigarette, ignition and open flame.
3) Exceptional mould-proof performance, has very wide application and very big market potential.
Incomming quality inspection:
Confrim order---purchase paper----paper delivery to factory----paper transfer to warehouse----weighting, check the quality and appearance---Qualified:process to arrange the paper storage in the warehouse. Disqualification:transfer into the disqualification area, inform and back to the paper factory.
Press machine OF HPL inspection:
Laminate out of the machine---inspect the sheets thickness---Qualified:transfer to the next production process. Disqualification:transfer into the disqualification area,waiting to be processed.
Pre-delivery Inspection:
The laminate transfer into the semi-finished products warehouse after cutting rough edge---inspect the appearance, size and thickness---Qualified: transfer into the finished products warehouse, wait for packing. Disqualification:transfer into the disqualification area,waiting to be processed.
Processing:
Application: Furniture, Construction, Decoration, Door, ( kitchen board, furniture board, cabinet, toilet board, etc)

---
