110V60Hz Fan for Condensing Unit

Product Description

Product Description

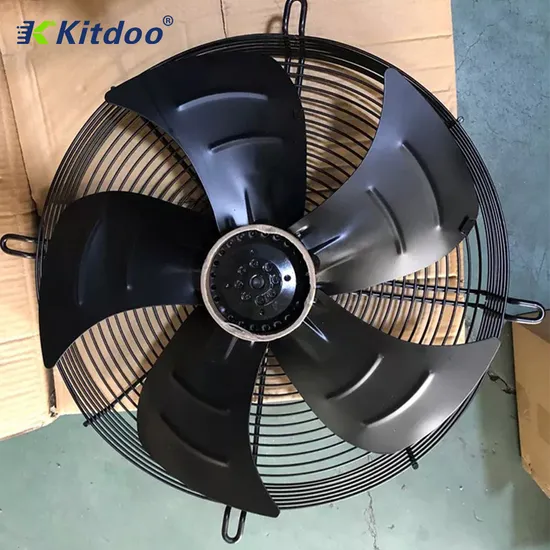

External Rotor Fan Blade Description
Welcome to Foshan Kitdoo Refrigeration Equipment Co., Ltd.
Our External Rotor Fan Blade is designed with advanced aerodynamics, ensuring both efficiency and a beautiful appearance. The fan rotor is directly connected to the blade, achieving dual-side dynamic balance of G6.3.
All components, including the fan blade, rotor, and grid, are spray-coated for a bright appearance that resists oxidation and discoloration, providing excellent corrosion resistance. The motor cover also undergoes special treatment.
The fan's insulation grade is suitable for ambient temperatures ranging from -25°C to +60°C. Customization is available for temperature ranges beyond this. The currently supplied fan comes in B-class, F-class, and H-class insulation grades with an IP54 protection class.
We offer fans for working environments with temperatures ranging from -40°C to +60°C and -25°C to +80°C, all equipped with thermal protection. Our upcoming IP56 external rotor motor with a new structure, holding a national patent, is ideal for high humidity and harsh environments.
Our fans are available in single-phase capacitor running and three-phase asynchronous running options. Single-phase motors come in 220V/50HZ and 220V/60HZ, while three-phase motors are offered in 380V/50HZ and 380V/60HZ. We can also accommodate special motor requirements such as special voltage or dual voltage.
The line fan motor can be easily connected, and we provide various water-proof junction box options for user convenience.
Detailed Photos


Our Case
Company Profile
Production Process
Packaging & Shipping
FAQ
Kitdoo Refrigeration Equipment
Welcome to Foshan Kitdoo Refrigeration Equipment Co., Ltd.
Q1: Are you a factory or a trading company?
A1: We have our own factory.
Q2: Where is your factory located?
A2: Our factory is situated in Foshan, Guangdong province.
Q3: Is a sample available?
A3: Yes, samples are available at your cost.
Q4: What is the main market for your products?
A4: Our products are popular in the Middle East, Southeast Asia, South America, Africa, and South Asia.
Contact us for more details!

---
