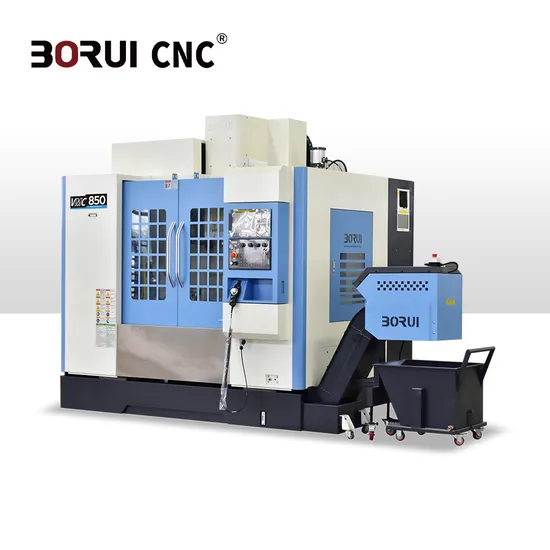

Vmc850 Vmc 850 CNC Vertical Machining Center CNC Milling Machines Vmc 5 Axis

Product Description

VMC850 Vmc 850 CNC Vertical Machining Center CNC Milling Machines VMC 5 Axis
Product Description
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
CNC Milling Machine Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running
* Totally enclosed, safety and beautiful
Product main technical parameters:

CNC machining machines for sale message center	VMC850
Capacity
table size	1050X500mm
Max. table load	600kg
T slot qty-width*distance	5x18x90
Spindle
spindle speed	8000 r p m
spindle nose to table surface	105-655mm
Spindle center to Column surface	628mm
Spindle taper	BT40
Main motor power	7.5/11kw
Three-axis servo motor power	2.0/2.0/2.0kw
Box way
X axis travel	800mm
Y axis travel	500mm
Z axis travel	550mm
X/Y/Z axis rapid feed	24/24/20m/min
Cutting feed speed	10m/min
Automatic tool changer
Tool changer type Tools capacity	drum/ hat type (arm type optional ) 16/16
Max. tool length	250/350mm
Max. Tool diameter	φ100(adjacent tool)/φ150(not adjacent tool)
Max.tool(kinfe) weight	8kg
Tool changing time(tool-to-tool)	1.8sec
Accuracy
Positioning accuracy	±0.005/300
Repeat positioning accuracy	±0.004/
Net Weight	4500 kg
Overall Dimension	2780X2450X2700

Standard : Optional :
* Siemens 808D controller * FANUC, SIEMENS828D, GSK , KND
* BT40 Armless type ATC with 16 tools * Arm type ATC
* Taiwan spindle, screw and locking nut, linear, cylinder . * 4th axis
* Japan NSK bearing * Automatic chip convey
* Germany R+W coupling
* Automatic lubrication system
* Cool-heat exchanger
* Tri-color alarm lamp
* Full splash guard* spindle taper hole cleaning system* cooling system
