Stainless Steel Stock Tanks CNC Automatic Grinding Polishing Machine for Pharmaceutical Industry

Product Description

Product Description

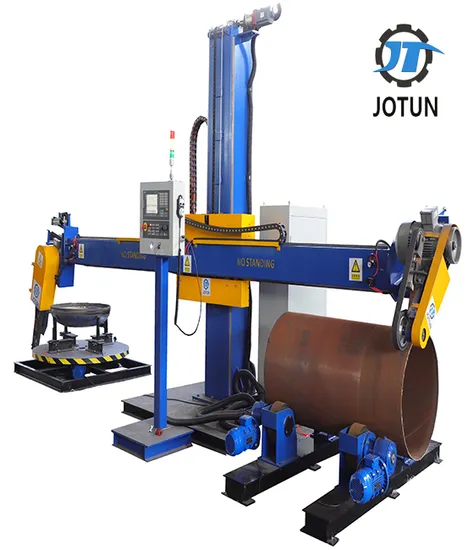

JT-CNC Siemens Automatic Polishing Machine
This machine has a CNC control system,you just need to set up the program and it will do the polishing work itself.
This model for polishing tank and dish head inside and outside to meet different Ra.(hairline/mirror finish...). our standard machine can polishing tank length up to 4000 mm.diameter from 400-4000mm. about dish head polishing,standard machine can polish dish head heigh is 800mm.(all machine can custom-made)

Product Features: 1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.4. GHS dust collector can be installed.

Specification of Machine
Main Motor Brand	Siemens
VFD/Driven Brand	Siemens
Component Brand	Siemens
Machine Dimension	5500*1600*2900mm
Machine Weight	30000kgs
Contaol System	CNC
Polishing Material	Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel,etc.
Application	tank shell, cylinder, pressure vessel, reactor,dish head,dished end,etc.
Patent No.	201120122490.4
Noted	Our products all Non-Standard Customization(the above data for reference only)

Specifications of Working Piece
Work Piece Size	Tank/Vessel/Cylinder	Diameter	200-5000 mm
		Max Length	6000 mm(customized)
		Max Weight	1/2/5/10/15Tons
	Dish head/Dished end	Diameter	400-5000 mm
		Max Height	800 mm
		Max Weight	1/2/5/10/15Tons
Material	stainless steel,Aluminium,carbon steel,copper,etc.
Surface Roughness	Ra ≤ 0.2 μm (Get matte ,bright and mirror surface)
Product Efficiency	10-12 square meters per hour

Detailed Photos
Packaging & Shipping
Our Advantages
1.Provide 12 months warranty period, free replacement of machine spare parts, and provide technical support and service for life.
2.24-hour online technical support service can be provided through chat tool(email,whatsapp,wechat,etc).
3.Provide overseas engineer services.
4.We have exported many machine to more than 60 countries and area,
and more than 20 years surface treatment solutions.
Company Profile
China Jotun Polishing Machine supply China professional
automatic grinding machine for Metal tank shell,dished end,flat sheet,round tube,welding seam treatment Equipment,main products are cylinder grinding machine, stainless steel tank shell polishing machine,dish head polishing machine, round tube polishing machine,welding seam grinding machine.
widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel,brewery,cylinder,cosmetic,sanitary,reaction kettle,fermentation?tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Oversea Customer Cases
Certifications
