1bzdz -4.8 Heavy-Duty Hydraulic Wing Disc Harrow/Harrow Disc/Disk Harrow

Product Description

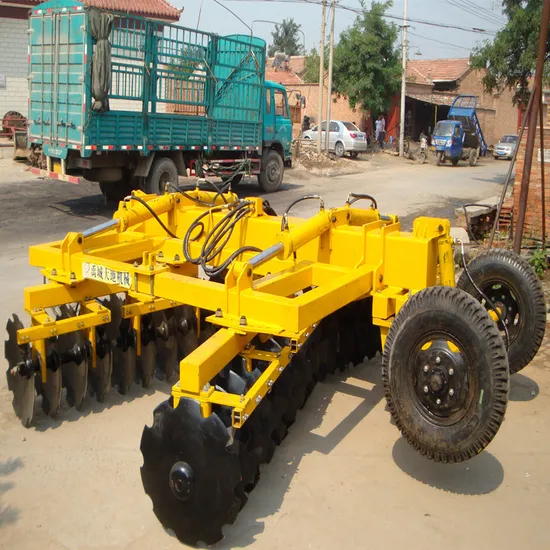

1BZDZ -4.8 Heavy-Duty Hydraulic Wing Disc Harrow
1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
If your farming operation calls for a heavy-duty offset disc harrow, there's no better choice than a Hydraulic lifting off-set Series.Thank you for visiting for our web. Hope the information will be helpful for you.
Specifications:

Model	Unit	1BZDZ-4.4	1BZDZ-4.8	1BZDZ-5.3
Overall dimension	cm	580x450x150	580x495x150	580x540x150
Weight	kg	3100-3150	3250-3300	3400-3450
Working width	m	4.4	4.8	5.3
Working depth	cm	20
Blade spacing	mm	230
No of disc	pc	40	44	48
Dia.of disc	mm	660
Transport clearance	mm	>260
Productivity	ha/h	4.4	4.8	5.3
Matched power	kw	105-110	115-120	125-130
Linkage		Trailed

---
