Basic Info.
Model NO.

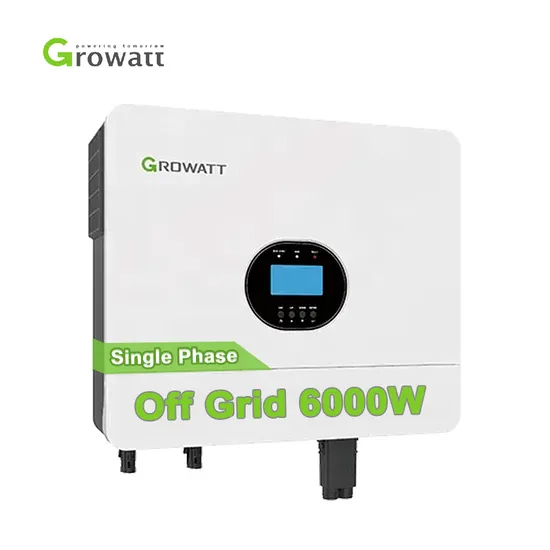

Growatt SPF 6000Es Plus
Nature of Source Flow
Passive inverter
Certification
SAA, CE, ISO9001
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
AC Connection
Single Phase
Maximum PV Array Power
6000W
Maximum PV Array Open Circuit Voltage
450VDC
Frequency Range
50Hz/60Hz (Auto Sensing)
Maximum Solar Charger
6000W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Parallel Capability
Yes, 6 Units
Battery Type
Lithium / Lead Acid
Specification
650/550/205mm
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
65.00cm * 55.00cm * 21.00cm
Package Gross Weight
17.000kg
Product Description
Product Description
Detailed Photos
Technical Parameter
| Datasheet | SPF 6000 ES Plus |
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output |
| Rated Power | 6000VA/6000W |
| Parallel Capability | Yes, 6 units maximum |
AC Voltage Regulation
(Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical,20ms Max |
| Solar Charger |
| Maximum PV Array Power | 8000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 450VDC |
Number of Independent MPP Trackers/
Strings Per MPP Tracker | 2/1 |
| Max. input current per MPP tracker | 16A |
Maximum PV Array Open
Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 100A |
| AC Charger |
| Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Physical |
| Protection Degree | IP20 |
| Dimension (W/H/D) | 460/395/132mm |
| Net Weight (kgs) | 13.5 |
| Operating Environment |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Altitude | <2000m |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
Package &Payment
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items in the package:
Company Profile
Eitai (XiaMen) Photovoltaic Technology Co., Ltd
is a high-tech enterprise specialized in the field of new energy, especially in the product research & development, production, sales and service. Its Headquarters are located in Xiamen Special Economic Zone,and it also has branches in Japan. With support of a professional team, the company provides its clients with safe,reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like automatic positioning piling machines, automatic solar module installation and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.
>>
