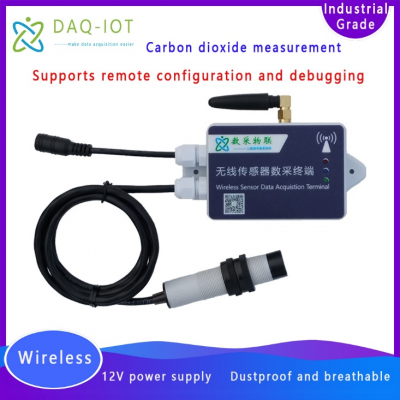

4G / WiFi/RS485/LoRa/NB Wireless CO2 Sensor
1 Product Overview
DAQ-GP-CO24G wireless infrared carbon dioxide sensor terminal is a wireless carbon dioxide concentration measurement product launched by Shanghai Data Acqisition IOT Technology Co., LTD. Principle: This product uses the non-dispersive infrared (NDIR) principle to detect CO2 present in the air. Since different kinds of gases absorb specific wavelengths of infrared light, the relationship between gas concentration and absorption intensity (Lambert-Beer law) is used to identify gas components and determine their concentration, which has the advantage of being less susceptible to environmental interference than chemical sensors.
The equipment is mainly composed of infrared light source, optical path, infrared detector, optical sensor composed of software algorithm and its supporting wireless transmission protocol processing part. This product can be widely used in gas pipeline, intelligent agricultural breeding, chemical plants, production workshops and other fields of carbon dioxide concentration monitoring.
By default, the sensor terminal supports 4G/WiFi/LoRa and other communication methods, and supports MQTT, HTTP and other communication methods, which can overcome the wireless communication block caused by the special environment on the site, greatly simplifying the field deployment time and reducing construction costs.
2 Service Concept
We solemnly promise that:
What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )
This product, the site only ordinary workers connected to electricity installation! No debugging!
We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.
Free Internet of Things solution consulting services!
3.Product Features3.1 Temperature Acquisition Characteristics
Type: CO2 concentration
Range: 400~5000 ppm, other ranges can be customized
Accuracy: ±3%F.S.
Acquisition Frequency: 1 second ~24 hours, support remote configuration
3.2 Electrical Character
Power Supply Mode: battery power supply or 12V DC / 220V AC
3.3 Communication Characteristics
Wireless Transmission Mode: 4G / NB-IOT / LoRa / WiFi
Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized
Data Forwarding: any public network server
Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.
Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.
Registration Package: support custom registration package, can be set to IMEI code.
Positioning: Support LBS base station positioning to facilitate the query of device location.
3.4 Structural Property
Material: PC plastic (enclosure)
Main Protection Level: IP65, dust, rain and snow environment can work
Main Body Size: 200mm 94mm 60mm
Temperature Measuring Probe Structure: patch type
Main Body Installation Method: wall hanging or screw fastening
Probe Installation Method: paste or screw tightening, binding belt installation
3.5 Work Environment
Ambient Temperature: -30°C~85°C
Humidity: 0~95% (non-condensing)
4.Product Core Advantages
v Simple installation, fast deployment, help the Internet of things project quickly landing.
v Using waterproof breathable membrane, effectively prevent dust entry, good air permeability.
v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.
v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.
v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.
v Non-invasive measurement, which does not affect the normal operation of the equipment.
v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.
5Data Reporting Communication Protocol5.1 Protocol Parsing Instructions
For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.
Example of JSON format:
{"CO2":731,"ID":"860344048491162"}
Message analysis:
{
"CO2": 731, / / CO2 gas concentration value, unit in ppm
"ID": "860344048491162" / / Device ID
}
5.2 Agreement Customization
If you need to customize other communication protocols, you can contact the business personnel to communicate them.
6.Platform Docking6.1 Default Platform
The product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:
Computer-side browser interface
Mobile terminal WeChat access interface
6.1 The User Specifies the Platform
Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and the MQTT theme to be released.
For example, the value of triples is:
ProductKey = b0FMK1Ga5cp
DeviceName = 862991419835241
DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q
