Plastic Straight Duct Fiber Optic Microduct 5mm to 20mm HDPE Air Blown Fiber Straight End Stop Reduction Gas Block Connector

Product Description

Plastic Straight Duct Fiber Optic Microduct 5mm to 20mm HDPE Air Blown Fiber Straight End Stop Reduction Gas Block Connector

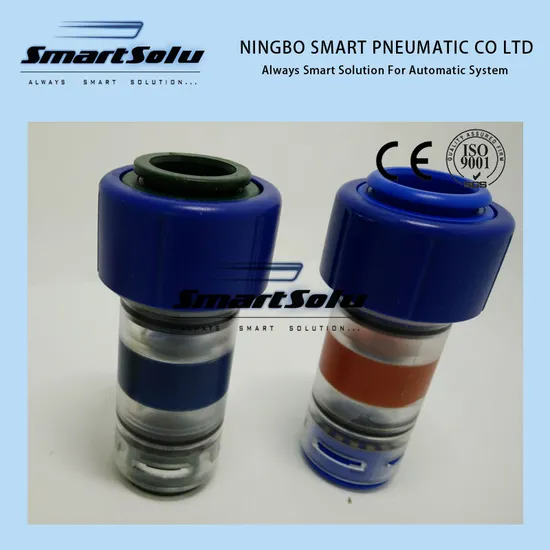

The Micro Duct Connectors make splicing MicroDuct fast and easy. Simply push the Micro Ducts into the center of the coupling. No tools are required. The coupler can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.
Push-Fit Micro Duct connector operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1cc/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).
Micro Duct Connector Feature:

Body Material:	PC, impact resistant
Collect Material:	POM, stainless steel teeth
O-rings Material:	Nitrile rubber
Blowing Pressure:	16 bar
Burst Pressure:	25 bar
Temperature Range:	-10 ~ 60°C
Insertion force:	50N max (5kg)

Specification:

No.	Description	Model No.	For Tube OD(mm)
1	3mm Straight Connector	PF03	3-3
2	4mm Straight Connector	PF04	4-4
3	5mm Straight Connector	PF05	5-5
4	6mm Straight Connector	PF06	6-6
5	7mm Straight Connector	PF07	7-7
6	8mm Straight Connector	PF08	8-8
7	10mm Straight Connector	PF10	10-10
8	12mm Straight Connector	PF12	12-12
9	14mm Straight Connector	PF14	14-14
10	16mm Straight Connector	PF16	16-16

We also have 18 and 20mm straight in stock.
Packing will be like below:
What Is Fitting And Connectors?Fittings and connectors are components used in various industries and applications to join or connect different parts of systems or equipment. They are designed to create secure, leak-proof, and reliable connections between pipes, tubes, hoses, or other components.We will always try to give you smart solution for your automatic systems.
