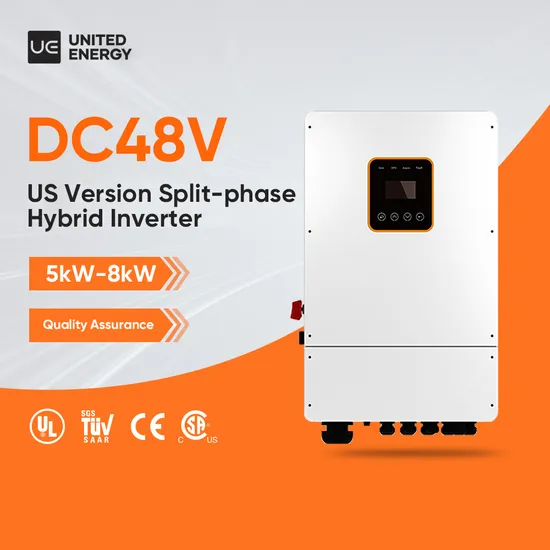

Hybrid Solar Inverter Price List 5kw 8kw 10kw 12kw Inverter with Lithium Battery for Solar Panel

US$699.00
1-49 Pieces
US$609.00
50-199 Pieces
US$550.00
200+ Pieces

Basic Info.

Nature of Source Flow
Active Inverter
Phase
Single
Output Power
5-8kw
Certification
SAA, CE, ROHS, ISO9001
Brand
United Energy
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Square Wave Inverter
Rated Power
8000W
Battery Voltage
48VDC
Application
Solar Power System Home
Product Name
MPPT Hybrid Solar Inverter
Color
Gray
Communication
WiFi / RS485
Protection
IP65
Feature
Energy Saving
Start Voltage
85V
Max. PV Voltage
500V
Transport Package
Carton Box with Pallets
Specification
430*710*210mm
Trademark
UNITED ENERGY
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week

Product Description

Product Description
Specifications
ModelR5KLNAR6KLNAR7KLNAR8KLNA
ON GRID AC OUTPUT
Rate AC Output Power5KVA6KVA7KVA8KVA
AC Output Voltage120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase)
AC Output Frenquecny50/60Hz
Grid TypeSplit phase, 2/3 phase, Single Phase
Max Output Current24A28.8A36.5A38.3A
AC reverse chargingYes
PF0.8leading…0.8lagging
BACK-UP AC OUTPUT
Rated Backup output power5KVA6KVA7.6KVA8KVA
Max Backup output power6.25kVA 60S. 7.5KVA 1S7.5kVA 60S. 9KVA 1S9.5kVA 60S. 11.4KVA 1S10kVA 60S. 12KVA 1S
Backup AC output Voltage120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
AC Frenquency50/60Hz
PV INPUT
PV input power7.5kW9kW12kW12kW
MPPT number4
PV voltage range350V/85V-500V
MPPT voltage range120V-500V
Single MPPT input current12A12A12A12A
BATTERY
Max charging /discharging current120A / 120A135A / 135A190A / 190A190A / 190A
Battery Voltage range48V
Battery TypeLithium-ion,Lead-acid
PROTECTION
Ground protectionYes
AFCI protectionYes
Islanding protectionYes
DC disconnect detectionYes
Battery Reverse protectionYes
Battery charge and discharge protectionYes
Insulation testingYes
Input overvoltage & under-voltage protectionsYes
Output overvoltage & under-voltage protectionsYes
AC & DC over-current protectionYes
AC short-circuit current protectionYes
Overheating protectionYes
GENERAL DATA
Operation Temperature range-25 ~ +60°C
Environment humidity0-95%
IP rankIP65/NEMA 3R
Weight32kg
Dimension (W × H × D)430 × 710 × 210mm
CoolingFan Cooling
Noise (dB)<25dB<29dB<29dB
DisplayLCD
Communication / Safty / EMC / On GridModbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B
EC62109-1, IEC62109-2 / UL1741 ,IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99
Certifications
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy's products have been widely applied in over 150 countries. UE Factory
