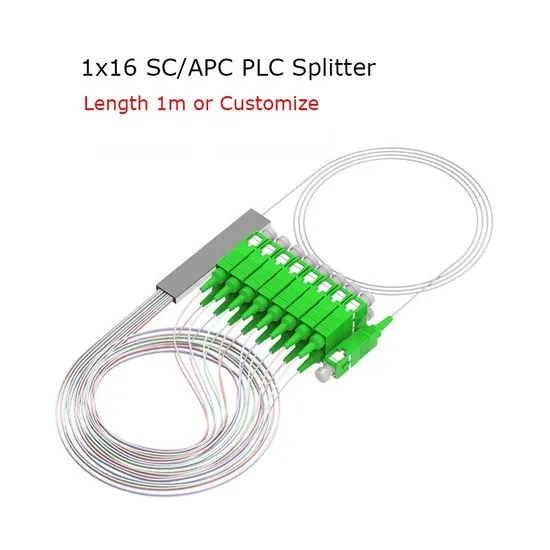

FTTH Fiber Optic Sc 1X2/4/8/16/32 APC Singlemode Mini Module PLC Fiber Splitter

Product Description

Factory Direct Sale Mini Module PLC Fiber Splitter, Blockless, 900μm, SC 1X2/4/8/16/32 APC Singlemode G.657A1 Product Parameters
Technical parameters

Operating Wavelength	1260~1650(nm)
Fiber Type	G657A1 or as customers' order'
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Return Loss (dB)	55/50
Directivity (dB)	> 55
Operating&storage temperature(°C)	-40-80

Order information

Code		Splitter
Configuration		0102	0104	0108	0116	0132	0164	01128
		1x2	1x4	1x8	1x16	1x32	1x64	1x128
Connector Type		SC	LC	FC	ST
Ferrule Type		UPC	APC
Fiber Type		G657A1 or customized
Jacket	Material	Hytrel	LSZH
	Color	Yellow	Blue	Black	Orange	Aqua	Purple	Customized
Diameter (mm)		0.9	2.0	3.0
Cable	Input	50	70	100	150	Customized
Length(cm)	Output	50	70	100	150	Customized

Chromatogram

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Product Description
Product profile
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Mini module PLC splitter has stronger fiber protection than bare fiber splitter; which is a miniaturization result of cassette splitter It's mainly used for various connection and distribution boxes or network cabinets.
Characterstic
•Excellent Mechanical,Small Size.
•High Reliability.
•Low insertion Loss and low Polarization Dependent loss.
•High channel counts.
•Excellent Environmental Stability and Widely Used.
• Connector Type: SC or Customer specified.
Application
•FTTX Deployments(GPON/BPON/EPON).
•Cable television (CATV).
•Local area networks (LAN).
•Test equipment.
•Passive optical networks(PON).
Company Profile
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.
Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users. Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.

---
