Wood Grapple Loader Digger Cotton Grapple Metal Recyling Scraps Materials Handler Excavator

Product Description

Product Description

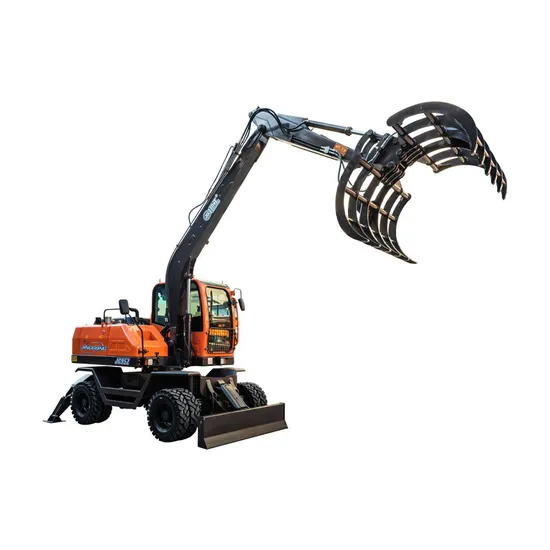

Sugarcane land grab excavator with grapple attachment
JG100Z grapple wheel excavator is installed with 65KW turbocharged engine and 360°rotary grab,
realizing a grab capacity of 0.5-0.6 tons.
This kind of wheeled excavator is suitable for the collecting and place of woods and sugarcanes.
It not only achieves good sales at home, but also finds huge markets in Southeast Asia, Saudi
Arabia and more.
Specification

SPECIFICATIONS
RANGE OF OPERATION			Boom length				3670mm
			Arm length				1860mm-2650mm
			Max radius of capture				7000-7800mm
			Grab the biggest opening width				1250mm
			Grab the minimum opening width				80mm
			Maximum radius weight capacity				800-900kg
			Grapple rotation angel				360°
			Maximum Dumoing height				4650-5100mm
			Back-End radius of gyration				198mm
			Max lifting height of cab				800mm
			Max extended distance of arm				800mm
DIMENSION			(Length*width*height) travel position				6450*2230*3050mm
			Wheel base				2430mm
			Track(Front/rear)				1850mm/1750mm
			Ground clearance of counterweight				1060mm
			Min ground clearance				200mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				8600kg
			Engine model				YN38GBZ/4102(Turbocharged)
			Rated Power				65KW
			Rated Speed				2400r/min
			Hydraulic system working pressure				21Mpa
			Hydraulic system flow				150L/min
			Variable piston pump				71ml/r
			Max Hauling force				58.5KN
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				825.16
			Volume Of Bucket				0.35m3
			Revolution Overdrive Pressure				20Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥4L/h
			Hydraulic Tank Capacity				110L
			Capacity Of The Fuel Tank				110L

Workshop Show
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have
rigorous production procedures, and each production process is carried out under strict quality inspection.Only after
passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean
and safe working environment.
