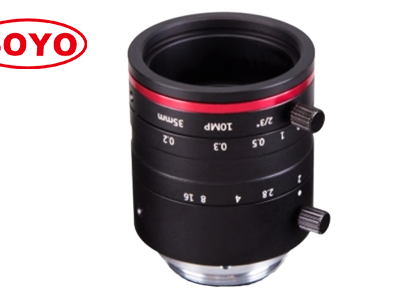

35mm 2/3" 10MP Machine Vision FA<0.1% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses For Sort 3D AOI
High resolution : 10 megapixel cover all 4K & 1080P
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Big aperture : F2.0 big aperture makes imaging far better
Low distortion : 0.1% low distortion use for measurement
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model
| SMV3520-10M
|
Resolution
| 10 Megapixel
|
Format
| 2/3"
|
Pixel size
| 3.45μm*2.4μm
|
Focal Length
| 35mm
|
Max Image Circle
| Φ11mm
|
Aperture (Close)
| F2.0 Manual iris
|
Angle of View (°)
| 2/3"
| 18*14.3*11
|
1/2"
|
|
M.O.D
| 0.2m
|
Relative Illumination
| 85%
|
Distortion
| 0.1%
|
B.F.L
| 12.7mm
|
CRA
| 9.5°
|
Size
| Φ37.5*42.8mm
|
Filter Size
| M30.5*0.5
|
Mount
| C
|
Weight
| 75g
|
Email: fany@soyocctv.com Skype/wechat: soyocctv
Warranty: 5 Years
Logistic : DHL, TNT, Fedex, UPS, SF etc.
( Suggest to Basler, Baumer, Hikvision )
( A Best MTF Chart )
>>
