Factory Price 1000 Liter Uhpc Mixer Machines Concrete Planetary Mixer

Product Description

Factory Price 1000 Liter Uhpc Mixer Machines Concrete Planetary Mixer
Product Description
The vertical shaft planetary mixer
is a forced concrete mixer. The vertical main shaft is driven by a motor on the top. The mixing device on the mixing main shaft can rotate around the central axis to ensure that there is no dead angle during the mixing process.
The vertical shaft planetary concrete mixer is a highly efficient, powerful, and multifunctional mixing equipment. The mixing device consists of a vertically mounted main shaft and multiple mixing arms, each equipped with mixing blades. The planetary mixing motion enables fast and uniform mixing, ensuring high production efficiency, excellent mixing quality, and superior concrete strength. It is suitable for various types of concrete and building materials. The operation is simple, and maintenance is convenient. Customized services are supported to meet diverse production needs.

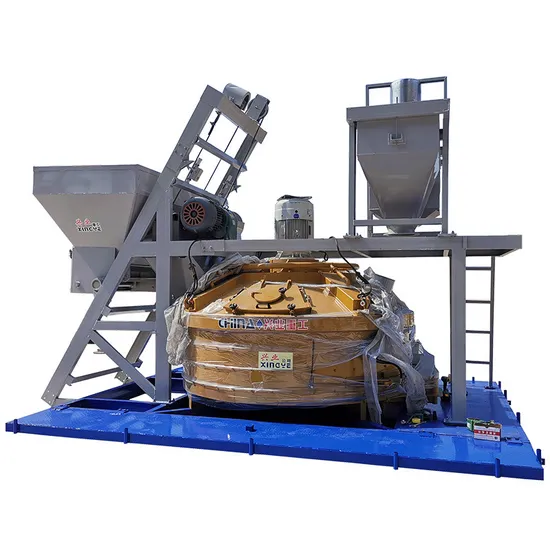

Detailed Photos
UHPC mixing equipment, uniform mixing, high efficiency
Vertical shaft structure, stable operation, low noise
Compact structure, small footprint
Wear-resistant, long service life
Good sealing performance
Low energy consumption
The vertical-shaft planetary concrete mixer is a highly efficient concrete mixing equipment.
Working Principle
There are mainly two types: the fixed-axis type and the fixed-pan type. In the fixed-axis type, the shaft only rotates without revolving, and the mixing is achieved by the rotation of the turntable. In the fixed-pan type, the pan remains stationary, and the mixing is realized by the revolution and rotation of the vertical shaft driving the mixer. The mixing arms and mixing blades of the mixer are fixed on the driven disk and the planet carrier. The blades connected to the planet carrier only revolve for scraping materials, while the blades connected to the driven disk both rotate and revolve for mixing.

Structural Features
- Mixing System: There are standard mixing and differential-speed mixing forms. The mixing arms are streamlined, often designed with wear-resistant protective sleeves, and the scraper blades are of enhanced type to eliminate mixing dead - corners.
- Discharging System: The discharge door can be opened and closed by hydraulic or pneumatic methods according to requirements. The number of discharge doors can be 1 - 3 or even more, and the discharge door is equipped with a special sealing device.
- Waterway Device: It usually adopts an upper - mounted form. Most of the spray nozzles are spiral solid-cone nozzles, with a fine and uniform atomization effect.
- Control System: Generally, an independent electric control cabinet is equipped, which can be connected to a PLC control system to achieve full-automatic control.

Performance Advantages
- High Mixing Efficiency: Through the planetary motion mode, it can achieve all - round and dead-corner-free mixing of materials in the mixing drum, significantly shortening the mixing time.
- Good Mixing Quality: The complex mixing trajectory ensures that the materials are fully mixed, avoiding caking and delamination, and guaranteeing the mixing quality.
- Strong Adaptability: It can adapt to special materials with high viscosity and low fluidity, and is suitable for the mixing of various concretes and refractory materials.
- Compact Structure: With a compact design, it occupies a small area, facilitating a flexible layout at the construction site.

Application Fields
It is widely used in the construction industry for the production of precast concrete components, such as concrete blocks and PC imitation stone bricks of various specifications. It is also used in concrete pouring of dams and other projects in water conservancy projects, road, and bridge construction in transportation projects, as well as in the production of UHPC ultra-high-performance concrete and the mixing of steel-fiber concrete, where high-performance concrete is required.
Product Parameters

SPECIFICATIONS FOR PLANETARY CONCRETE MIXER
Type	PMC500	PMC750	PMC1000	PMC1250	PMC1500	PMC2000
In capacity(L)	750	1125	1500	1875	2250	3000
Out capacity(L)	500	750	1000	1250	1500	2000
Out mass(kg)	1800	2400	3000	3600	4800	6000
Mixing power(kw)	18.5	30	37	45	55	75
Discharging power(kw)	Pneumatic discharge (optional hydraulic)		3	3	3	4
Planet/main planet(nr)	1/2	1/3	2/4	2/4	2/4	3/6
Paddle	1	1	1	1	1	1
Discharging paddle	1	1	1	1	2	2
Weight(kg)	2400	3900	6200	6700	7700	9500
Lifting power(kw)	4	7.5	11	15	15	22
Dimension(mm)	2230x2080x1880	2580x2340x2195	2890x2602x2220	3060x2760x2305	3230x2902x2470	3625x3230x2630

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China. The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications

Our Advantages

Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.
FAQ
1. Are you a manufacturer, trading company, or a third party?
We are a manufacturer with 15 years of manufacturing experience
2. Can the machine be customized to our needs, such as put on our logo?
Our faith is to Get The Right Equipment for the Job, Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If I will need to stay at your place for a few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take a long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the device can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come to visit our company.

6. How can I get to your factory?
We can pick you up at the airport.
7. May I know which payment will be accepted by your company?
So far 100%T/T before shipment, 30% deposit paid by T/T, and balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred with your overseas customer in time?
The warranty of our machine is typically 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts are delivered as soon as possible.
9. After we place an order, will you arrange the installation of the machine at present?
All the machines will be tested well before being delivered, so almost of them can be used directly, also our machines are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the costs will be be
charged by you.

---
