Basic Info.
Principle
Oscillating Knife
Computerized
Computerized
Certification
CE, ISO9001:2008
Name

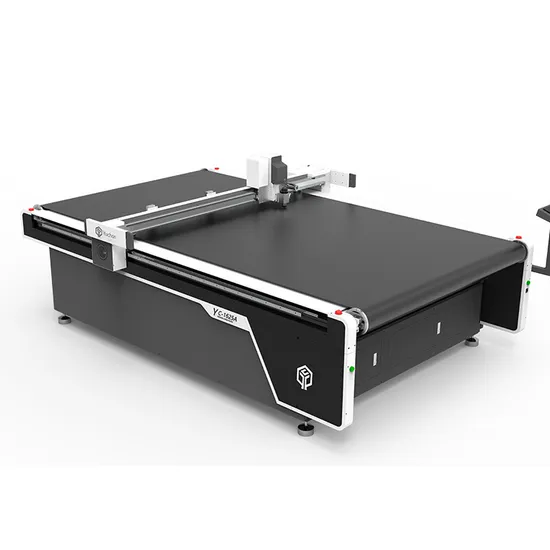

Digital Cutting Machine
Max. Cutting Speed
1200mm/S
Multifunctional Head Cutting Tools
Oscillating Knife,Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Smtycc Linear Rail and Rack
Rated Power
11kw or Others
Operation Properties
Online
Safety Device
Infrared Blocking Device,etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Wooden Cases.
Specification
2500*1600mm
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
250.00cm * 160.00cm * 90.00cm
Package Gross Weight
1000.000kg
Product Description
Advantages of Yuchen cutting machine:
1. It can replace traditional manual or semi-mechanical cutting methods to reduce labor costs
2. Use industrial cameras to clearly extract contours, generate cutting paths, and cut easily
3. It is best that one machine can cut a variety of materials to adapt to economic development
4. High-quality cutting, to solve the problem of small order quantity and inconsistent order quality.
5. The CNC cutting operating system is simple, don't worry about recruiting
6. Very friendly to the environment, no pollution
Product Parameters
Model | YC-1625L YC-1625A | YC-1630L YC-1630A | YC-1830L YC-1830A | Other sizes are customizable |
Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm |
Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime |
Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable |
Max. cutting speed | 1200mm/s |
No-load speed | 1500mm/s |
Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. |
Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) |
Cutting accuracy | ±0.1mm |
Transmission interface | Ethernet |
Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack |
Fixed mode | Vacuum absorb |
Supply voltage | AC 220V 380V±10%,50HZ |
Rated power | 11KW or others |
After Sales Service
FAQ
1.payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway. Actual cost reimbursement
5.instal
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year free warranty
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed
>>
