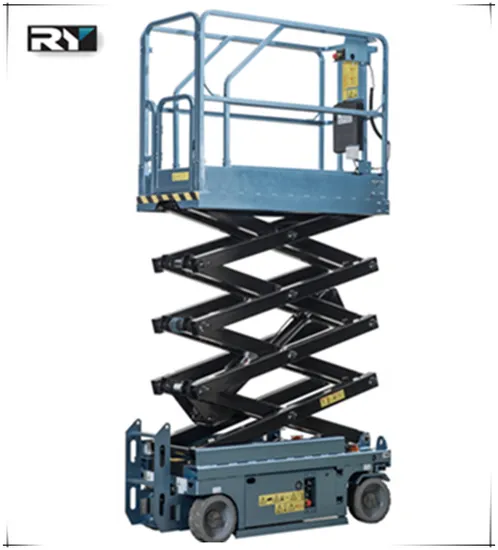

Scissor Lift Platform for Rental in The World

US$5,600.00-9,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZS0607
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Certification
GS, CE, RoHS, ISO 9001
Gradeability
30%
Drive Motor
White
Pcu&ECU
Delta Tech
Swithc
Schneider
Controller
Curtis
Hose
Alfagomma
Sensor
Honeywell
Battery
Troian
Charger
Delta-Q
Transport Package
Standard Export Packing or as Required
Specification
L*W*H: 1.82*0.81*2.06m
Trademark
RY
Origin
China
HS Code
84289090
Production Capacity
800PCS/Year

Product Description

ZS0607Key Features: Zero-emission electric operation Front-wheel drive and zero inside turning radius 35 in (0.89 m) roll-out platform extension Automatic 25 amp battery charger Proportional controls for drive functions Multiple disc brakes provide smooth deceleration Drive speed interlock limits speed while elevated On-board diagnostics for easy troubleshooting Emergency stop at both platform and ground controls Solid, non-marking tires
Working Height Maximum 7.8 m (25 ft 7 in)
Platform Height Maximum 5.8 m (19 ft)
Length 5 ft 12 in (1.82 m)
Width 2 ft 8 in (0.81 m)
Height Stowed 7 ft 2 in (2.18 m)
Platform Size (leigth * width) 5 ft 5 in * 2 ft 6 in (1.65 m x 0.76 m)
Side-Out Platform Extension Deck 2 ft 11 in (0.9 m)
Ground Clearance-center 0.8 in (0.02 m)
Wheelbase 4 ft 5 in (1.35 m)
Lifting Capacity 6507 lbs (230 kg)
Turning radius (inside / outside) 0 /5 ft 1 in (1.55 m )
Drive speed stowed 2.5 mph (4.0 km/h)
Drive speed raised 0.5 mph (0.8 km/h)
Raise/Lower speed 18 / 28 s
Gradeability stowed 25 %
Max.work angle of inclination 3° / 1.5°
Tires-sold non-marking 12 x 4 in (30.5 x 11 cm)
Drive motor 4.49 ps (3.3 kw)
Battery 24V DC (four 6V DC 224 ah batteries)
Weight 3307 lbs (1500 kg)

Drive motor 4.49 ps (3.3 kw)
Battery 24V DC (four 6V DC 224 ah batteries)
Weight 2734 lbs (1,240 kg)
