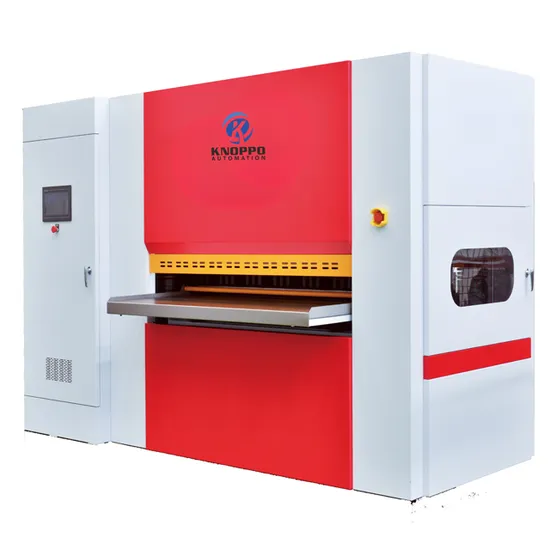

Stainless Steel Metal CNC Processing Straightening Machine Leveling Machine for Sheet Metal Aluminium Carbon Steel

US$32,000.00 1 Set (MOQ)

Basic Info.

Model NO.
G100-1600
Usage
Sheet
Voltage
380V
Automatic Grade
Automatic
Principle
Large Deformation
Certification
CE
Warranty
24 Months
Customized
Customized
Condition
New
Product Name
Metal Sheet Straightening and Leveling Machine
Color
Red-White
Working Type
CNC/Hydralic
Package
Wooden Box
Application
Metal Sheet Leveling
Rated Leveling Width
500mm 800mm 1300mm 1600mm
Roll Diameter
63mm
Rated Plate Thickness(Q235)
1~30mm
Leveled Precision
0.5mm
Technical Features
High Precision
Certificated
European CE
Factory
Jinan , China
Weight
20t
Roller Gap Adjustment
CNC
Feeding Speed
0-10 M / Minute, Can Be Adjusted
Transport Package
Wooden Box
Specification
4000x2400x2500mm
Trademark
KNOPPO
Origin
China
Production Capacity
100 Sets/Month

Product Description

Sheets Steel Plate Sheet Metal Processing Straightener machine for laser cutting parts

Why do you need leveling process after lasering or plasma-cutting or after stamping? Thermal manufacturing processes such as laser, oxy-fuel or plasma cutting introduce a great deal of heat into the material. The resulting temperature gradient within the material leads to stresses and edge hardening. Parts and sheets cut by such methods are distorted.
PRODUCT SPECIFICATIONS
Specifications / models
G80-1600
G100-1600
G125-1600
Leveling thickness
2-15mm
3-20mm
5-30mm
Leveling Width
≤1600mm
(Equipment opening width: 1700mm)
≤1600mm
(Equipment opening width: 1700mm)
≤1600mm
(Equipment opening width: 1700mm)
The diameter of leveling roller / quantity
Φ80
Top 9 + bottom 10=19 roller
Φ100
Top 8 + bottom 9=17 roll
Φ125
Top 7 + bottom 8=15 roll
Driving Type of leveling roller
AC deceleration motor * 2 22 KW * 2 on the left
AC deceleration motor * 2 30 KW * 2 on the left
AC deceleration motor * 2 37 Kw * 2 on the left
Feeding Speed
0-10 m / minute, can be adjusted
0-10 m / minute, can be adjusted
0-10 m / minute, can be adjusted
Adjustment of Leveling speed
Frequency converter * 2 sets
Electronic speed control up and down roll synchronization, overload automatic shutdown function
Frequency converter * 2 sets
Electronic speed control up and down roll synchronization, overload automatic shutdown function
Frequency converter * 2 sets
Electronic speed control up and down roll synchronization, overload automatic shutdown function
Roll gap measurement and display
Displacement sensors of * 4
Touch screen display, the PLC controls the electrical
Displacement sensors of * 4
Touch screen display, the PLC controls the electrical
Displacement sensors of * 4
Touch screen display, the PLC controls the electrical
Roller gap adjustment
Servo motor, CNC adjustment;
Worm wheel screw lift;
Automatically adjust up and down
Servo motor, CNC adjustment;
Worm wheel screw lift;
Automatically adjust up and down
Servo motor, CNC adjustment;
Worm wheel screw lift;
Automatically adjust up and down
leveling accuracy (flatness)
0.5mm / m2
0.5mm / m2
0.5mm / m2
weight
18T
20T
25T
Dimensions
3800*2300*2400mm
4000x2400x2500mm
4200*2500*2500mm

Sample
Before And After of leveling
Our Advantages
Straighten sheets and parts quickly Manual straightening is time-consuming, since our cylinder straightening machines straighten metal sheets in a few minutes and almost without tension. We have achieved excellent results for straightening parts with space gaps while using the build-in gap regulation. Our straightening machines guarantee the highest product quality and required standards.
Straighten to the thickness of 30 mm The modern technology straightens steel parts, light metal sheets, cut out electrical sheets, steel plates, perforated plates, brake discs, blades, bars, steel products, stillages, stampings, cut-out plates to the thickness of 30 mm.

Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing metal processing intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 metal processing systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, laser welding machine , laser cleaning machine , deburring machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.
