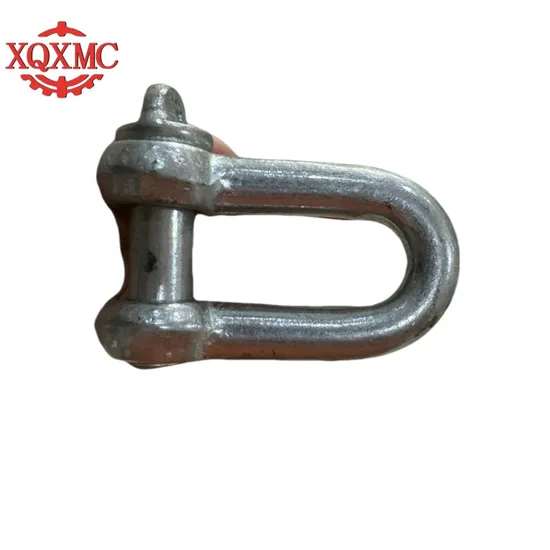

Drop Forged D-Shape G210 Shackle 3 Ton

Product Description

Product DescriptionProduct Overview
G210 shackle, that is, G210 American die forging shackle, is a high-strength, high-safety connector, mainly used in hoisting, traction and fixing operations. Its design is reasonable, compact structure, can bear large loads, and ensure the safety and stability of the operation.
Second, product features
High strength: G210 shackle is made of high-quality alloy steel material, processed by die forging process, which has high strength and toughness, and can withstand large loads and impact forces.
High safety: The products undergo strict quality control and testing to ensure compliance with relevant standards and requirements. At the same time, its design is reasonable and the structure is stable, which can effectively prevent potential safety hazards such as accidental falling off and breakage.
Easy to use: The G210 shackle is quick and easy to install and disassemble, eliminating the need for complex tools and operations, which can greatly improve work efficiency.
Corrosion resistance: The surface of the product is galvanized or other anti-corrosion treatment, which has good corrosion resistance, and can be used for a long time in harsh environments without being easy to rust or damage.
Product Specifications:
The G210 shackle is available in a variety of sizes, capacity, and models to meet different operating scenarios and needs. The specific specifications can be selected and customized according to the actual needs.
Fourth, the field of application
G210 shackle is widely used in hoisting, traction, fixing and other fields, such as shipbuilding, bridge construction, petrochemical, machinery manufacturing and other industries. Its high strength and high safety make it one of the indispensable connectors in these industries.
5. Precautions
Before using the G210 shackle, check whether its appearance and performance meet the requirements to ensure that there are no defects such as cracks and deformation.
Appropriate specifications and types should be selected according to actual needs to ensure the safety and stability of the operation.
During use, the operating procedures and safety specifications should be strictly adhered to to avoid overloading and overuse.
The G210 shackle is regularly inspected and maintained to ensure that it is in good working order.
In summary, the G210 shackle is a high-strength, high-safety connector with a wide range of applications and important value. During use, relevant regulations and specifications should be strictly adhered to to ensure their safety and stability.Detailed Photos
Product Parameters

Nominal	Working	Dimensions											Weight Each
Size	Load
(in.)	Limit	(in.)											(lbs.)
	(tons)	A	B	C	D	E	F	G	K	L	M	N	G-210	G-215
													S-210	S-215
1/4	1/2	0.47	0.31	0.25	0.25	0.97	0.61	0.88	1.59	0.19	1.38	1.34	0.11	0.10
5/16	3/4	0.53	0.38	0.31	0.31	1.16	0.75	1.03	1.91	0.22	1.66	1.59	0.17	0.18
3/8	1	0.66	0.44	0.38	0.38	1.41	0.91	1.25	2.30	0.25	2.03	1.86	0.24	0.25
7/16	11/2	0.75	0.50	0.44	0.44	1.63	1.06	1.44	2.66	0.31	2.38	2.13	0.40	0.38
1/2	2	0.81	0.63	0.50	0.50	1.81	1.19	1.63	3.03	0.38	2.69	2.38	0.59	0.50
5/8	31/2	1.06	0.75	0.62	0.63	2.31	1.50	2.00	3.75	0.44	3.34	2.91	1.21	1.21
3/4	43/4	1.25	0.88	0.81	0.75	2.75	1.81	2.38	4.53	0.50	3.97	3.44	2.25	2.00
7/8	61/2	1.44	1.00	0.97	0.88	3.19	2.09	2.81	5.33	0.50	4.50	3.81	3.16	3.28
1	81/2	1.69	1.13	1.00	1.00	3.69	2.38	3.19	5.94	0.56	5.07	4.53	4.75	4.75
11/8	91/2	1.81	1.25	1.25	1.13	4.06	2.69	3.58	6.78	0.63	5.59	5.13	6.75	6.30
11/4	12	2.03	1.38	1.38	1.25	4.53	3.00	3.94	7.50	0.69	6.16	5.50	9.06	9.00
13/8	131/2	2.25	1.50	1.50	1.38	5.00	3.31	4.38	8.28	0.75	6.84	6.13	11.63	12.00
11/2	17	2.38	1.62	1.62	1.50	5.38	3.62	4.81	9.06	0.81	7.35	6.50	15.95	16.15
13/4	25	2.88	2.12	2.12	1.75	6.38	4.19	5.75	10.97	1.00	9.08	7.75	26.75	29.96
2	32	3.25	2.00	2.00	2.00	7.25	4.81	6.75	12.28	1.22	10.34	8.75	42.31	43.25
21/2	55	4.13	2.62	2.62	2.62	9.38	5.69	8.00	14.84	1.38	13.00	--	71.75	--

Certifications
Company Profile
Qingdao Xinquanxi Metal Products Co..Ltd. was established in 2001 (formerly known as Qingdao Quanxi Hardware Cable Co., LTD.), located in Jimo District, Qingdao city, the company was mainly engaged in the production and sales of Japanese open-body turnbuckle, die forging shackles, products are mainly sold to the United States, Russia, Japan and other countries.
In September 2019, with the continuous development of the company's business, it merged with Qingdao Ruihongjie Industry and Trade Co., LTD., and changed the company name to Qingdao Xinquanxi Metal Products Co., LTD. At the same time, the business range is gradually expanding, the main production and operation of hardware rigging, wire rope connecting parts, hardware machinery, Marine and automobile connecting parts, all kinds of forging, sheet metal, stamping, casting parts and other products. After more than 20 years of development, we have established a complete system, with strong technical capacity, mature production methods, advanced production equipment and testing methods.
We always adhere to the principle of quality first, safe production, timely delivery, customer satisfaction after sale service, and constantly research and learn product expertise, with the best quality products to serve customers.
FAQ
.Are you a factory or a trading company?

We have our own foundry and forging factory. The forging plant has 4 production lines and a history of more than 20 years;Foundry has a history of more than 30 years.
2.How do you control your quality?
1: Control during r&d at the beginning of production
2:Production process control
3:Dimensional control
4:Tensile tests
5:Quality inspection before delivery
3.Can we have our product markings on it?
Yes, we can add product markings according to your requirements.
4.How about packing?
Woven bag, carton, plywood pallet or by customer requirements.

---
