T-Po3213 Pon Optical Power Meter

Product Description

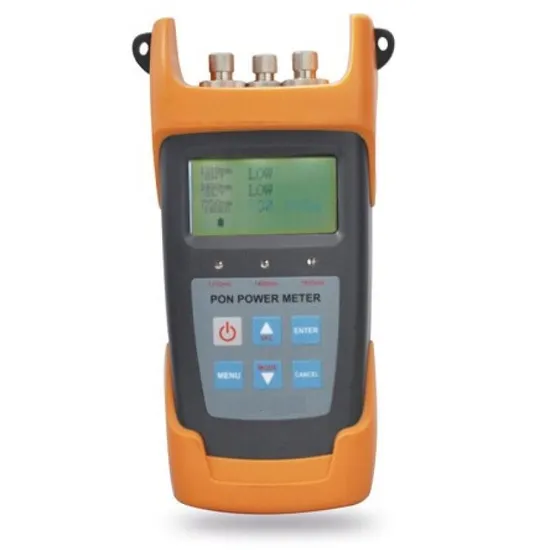

T-Po3213 Pon Optical Power Meter
Description
T-PO3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
1. It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
2. Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
3. Used in Burst mode measurement of 1310nm upstream.
4. Use the software connect with PC, setting the threshold, data transfer, and calibration the ave length.
5. USB communication port enables data transfer to a PC.1000measurement item can be saved in T-PO3213 PON power meter or computer for data review.
6. With optical power meter modual,include850,300,1310,1490,1550,1625sixs(T-PO3213AP, T-PO3213A
without 850nm wavelength );With visual fault locator modual (T-PO3213andT-PO3213AV)
7. Optical power meter and VFL with one port.(onlyT-PO3213A)
8. Optional Chinese/English display.
9. Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
10. 10 minutes Auto-off function can be activated or deactivated
11. Good key design,high sensitivity, greatly reducing the volume and weight of the
tester.
12. Different models corresponding to different function, according to own use to
choose .
PON module:Features

1310 upstream measurement
Pass Zone(nm)	1260nm~1360nm
Measurement Range (dBm)	-40dBm~+10dBm
Output power(max)	15dBm
Isolation@1490/1550(dB)	>40dB
Burst mode measurement error	<±0.5dB
1490 downstream measurement
Pass Zone(nm)	1535nm~1570nm
MeasurementRange(dBm)	-40dBm~+10dBm
Output power(max)	25dBm
Isolation@1310/1550(dB)	>40dB
1550 downstream measurement
Pass Zone(nm)	1535nm~1570nm
Measurement Range(dBm)	-40dBm~+10dBm
Output power(max)	25dBm
Isolation@1310/1490nm)	>40dB
Measurement Accuracy
Connatural uncertainty(dB)	±0.5dB
Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB
General Information
Detector Type	InGaAs
Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V~5.5V
Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON: 90h	PON: 90h OPM: 100h VFL: 50h	PON:90h VFL: 50h	PON: 90h OPM:100h
Operation Temperature(ºC)	-10ºC~60ºC
Storage temperature(ºC)	-10ºC~60ºC
Weight(kg)	423g	425g	424g	424g

Note: The operation time of the battery are all for the instrument that do not turn on backlight, if the backlight turn on the operation time will be shorted.
Normal Optical Power Meter Module

Normal Optical Power Meter		T-PO3213 2	T-PO3213A		T-PO3213AP
Measurement Accuracy
Connatural uncertainty(dB)			±0.5dB
Linearity(dB)		None	±0.1dB
Measurement Range(dBm)			-70dBm~+6dBm
General Information
Measurement Unit			dB/dBm
Resolution (dB)			0.01dB
		None
Calibration			1300/1310/			850/1300/1310/
Wavelength(nm)			1490/1550/1625			1490/1550/1625
Detector Type			InGaAs
Optical Connector			FC/SC/ST Interchangeable/2.5 universal
			adapter
2. :T-PO3213do not have the OPM module

VFL Module

	VFL	T-PO32133	T-PO3213A	T-PO3213AV
	Output power		>0.5mW
	Wavelength		650nm
	Optical Connector	None	FC/SC/STInterchangeable/2.5 universal
			adapter
	Fiber Type		SM/MM

3:T-PO3213 without VFL module.

---
