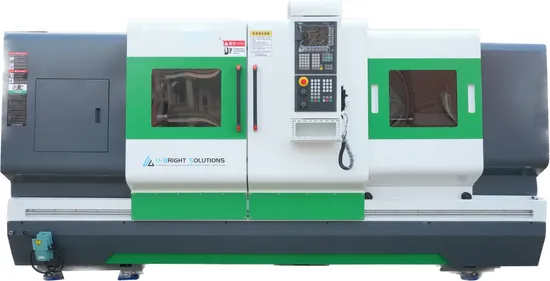

Advanced Syntec CNC Rotor Whirling Machine for Precision Manufacturing

US$30,000.00-110,000.00 1 SET (MOQ)

Basic Info.

Model NO.
PH80-2000
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Controller
Syntec
Transport Package
Plywood Case
Specification
2700*1800*2000
Trademark
ubright
Origin
Cn
HS Code
8459619000
Production Capacity
400sets/Year

Product Description


Item
PH46-750
PH50-1000
PH50-2000
Max machining length
500mm
750mm
1750mm
Spindle RPM
0-1500 rpm
0-1200 rpm
0-1200 rpm
Chuck size
200mm(8")
250mm(10")
250mm(10")
(can be optional)
(can be optional)
(can be optional)
Indexing accuracy
0.01°
0.01°
0.01°
Positioning accuracy
0.015mm
0.015mm
0.015mm
Repeated accuracy
0.01mm
0.01mm
0.01mm
Whirling head power
4-3KW(110W2)
4-4KW(150W2)
Whirling speed
1000-2000rpm
500-1000rpm
Helical angle range
±10°
±15°

Total power
15kw
16kw
16kw
Machine weight
2600kg
3000kg
3200kg
Machine size
2300x1700x2000
2700x1800x2000
3200x1800x2000

PH80-1500
PH80-2000
PH80-3000
PH80-4000
1250mm
1750mm
2700mm
3700mm
0-800 rpm
0-800 rpm
0-800 rpm
0-800 rpm
320mm(12")
320mm(12")
320mm(12")
320mm(12")
(can be optional)
(can be optional)
(can be optional)
(can be optional)
o.o1°
0.01°
0.01°
0.01°
0.015mm
0.015mm
0.015mm
0.015mm
0.01mm
0.01mm
0.01mm
0.01mm
4-5.5KW(175W2)
4-7.5KW(245W2)
400-700rpm
300-500rpm
±15°

±20°

20kw
22kw
25kw
26kw
3800kg
4400kg
5000kg
5000kg
3700x2000x2200
4400x2000x2200
5200x2000x2200
5200x2000x2200
Remarks:The machine will be customzied as per customers' requirements
