Small Two-Way Rotary Full-Automatic Salt Tablet Briquetting Machine for Hydraulic Granulating Tablets

Product Description

Product Description
Following is the specification of ZP40-9 for your reference.

Model	ZP40-9
Dies	9sets
Max working pressure	400Kn
Dia of Tablet	30-60mm
Max Depth of Fill	43mm
Thickness of tablet	15-24mm
Turret Speed	1-15r/min
Motor	7.5kw 380v/50hz(customized)
Max Production Capacity	8000 pcs/h
Net Weight	2800kg
overall size	900*900*2200mm

Product Parameters
Introduction:

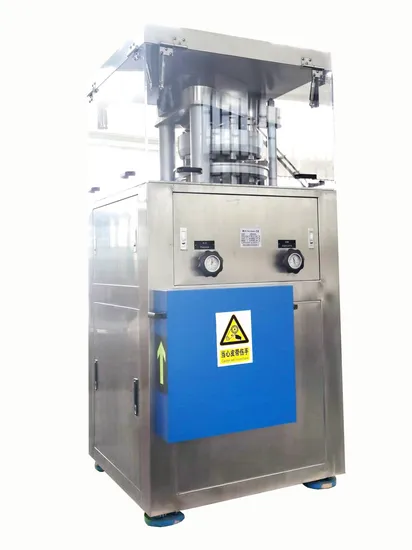

ZP40-9 rotary tablet press is widely used in production of 30g TCCA/disinfection tablets.
ZP40-9 rotary tablet press is a mid-size machine model. It has been widely used in chemical, food, health beauty and other areas. ZP40-9 rotary tablet press is a R&D product from our company. It is suitable to press all kinds of granular materials into tablets of round or nun-round shapes. It is popular in bigger tablet production (eg: Dia=30-60mm), such as animal medicine, art use block.
Its machine body is packaged by stainless steel and its tablet pressing room uses a new fully enclosed structure of Plexiglass, bright and of good appearance.
One of its typical Applications is for 20g chlorine tablet production. Just in china, more than 60 sets of our ZP40 series machines are used to produce 20g/30g chlorine tablets. For example: Hebei Jiheng Chemical and Tai'An Huatai Chemical are using our ZP40 series machines.
Characters:

*high working pressure, guarantee the quality of finished tablets, e.g.: hardness.
* High-quality stainless steel structure.
*Pressing tablet Room 360 ° with transparent windows of plexiglass. No dead structure, easy to observe and clean.
*its overall is designed of the seal and dust tight structure.
* Easily removable structure, easy operation and maintenance.
* The speed adjustment of the driver is controlled by the frequency conversion device.
30g TCCA/Chlorine tablet press/small swimming pool disinfection tablet press
We are the rotary tablet press machine manufacturer since year 1986. Rotary tablet press machines we make have arrived Mexico/Brazil/UK/USA/Poland/Holland/Japan/India/Switzerland and so on.

---
