Turbine Worm Machining Reducer Worm Numerical Control Worm Grinder

Product Description

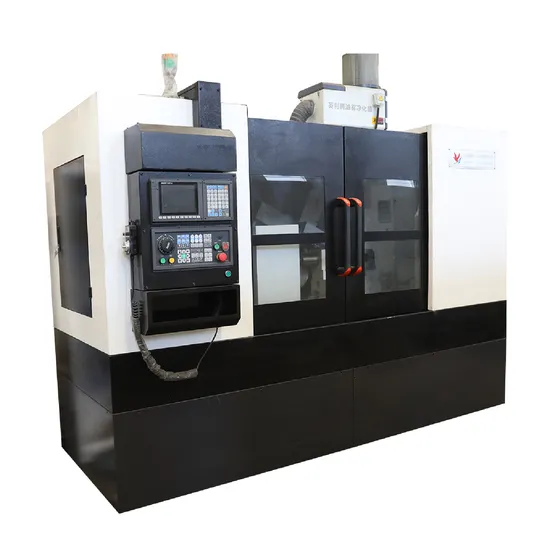

WGM150×750 CNC worm grinding machine
WGM150×750 CNC worm grinding machine is the leading variety developed by our company, suitable for grinding cylindrical worm.
1, the machine tool as a whole for the "D" structure, headstock and tailstock installed on the work table. The table moves reciprocally along Z axis. The saddle moves along the X - axis. The motorized spindle turntable (B axis) is mounted on the bed saddle. The grinding wheel dressing table is installed on the rotary table (B axis) to realize synchronous rotation with the motorized spindle.
2, the machine bed adopts ball linear guide rail, high rigidity, good wear resistance. High positioning accuracy, fast moving response, low speed feed without crawling phenomenon. 3, headstock spindle C axis adopts servo motor directly connected with high precision wear-resistant worm gear and worm pair (this worm gear and worm pair is anti-backlash worm gear and worm, backlash adjustment is convenient). The front end of the spindle is equipped with a special fixture to facilitate the disassembly of the workpiece.
4, feed axis [Z axis, X axis] adopts high precision ball screw through servo motor direct drive to achieve no clearance transmission, high transmission accuracy, high positioning accuracy.
5, grinding head adopts high power spindle, which can realize stepless variable speed and wide speed range. Servo motor drives nc turntable to adjust grinding Angle to ensure machining accuracy.
6. The feeding mode of tailstock sleeve is hydraulic feeding to facilitate the disassembly of the workpiece, and the overall feeding of tailstock is manual.
7. Grinding wheel dressing table adopts working table assembly and dressing wheel adopts diamond roller.
8, the machine tool system using wide digital system or Taiwan yitu CNC system.
9, machine tool guide rail lubrication using centralized intermittent special lubrication pump lubrication, lubrication in time.
10, the machine is equipped with magnetic separator, processing through forced cooling to achieve lubrication cooling effect.
11. The electrical components in the machine tool electrical control cabinet are all purchased from delixi, a well-known brand in China.
12. Machine tool is equipped with machine tool protective cover. Beautiful appearance, smooth lines, proper operation parts.
13, machine grinding accuracy 5, finish 1.6.
Machine structure and main technical parameters

item	content	unit
The length of the lathe bed	2700	mm
Bed width	1050	mm
Bed guide rail type
Maximum machining diameter	Φ150	mm
Maximum workpiece length	750	mm
Maximum grinding length	500	mm
Number of screw heads of workpiece	any
Spindle rated power	18.5	KW
Rated speed of electric spindle	3000	r/min
Maximum rotation Angle	±30	degree
Grinding wheel specifications	Φ300-Φ400×(10,20)	mm
Spindle diameter of tailstock	Φ100	mm
Maximum stroke of tailstock sleeve	60	mm
Tailstock sleeve mounting taper hole	Morse 4 #
Tailstock cylinder specifications	MOB63×60

---
