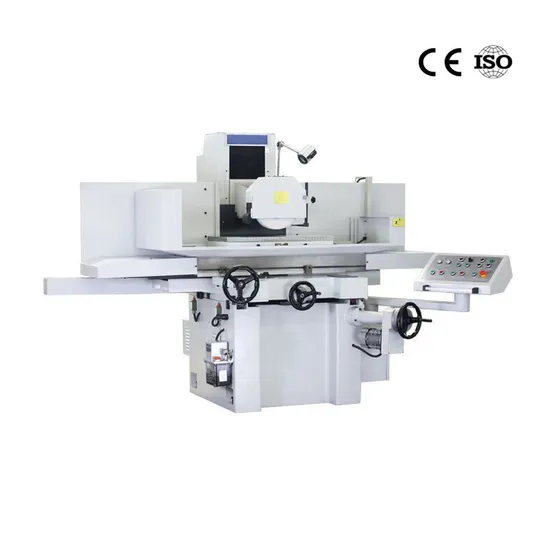

Senmo Surface Grinding Machine Grinder Sga4080ah/Ahr/Ahd

Product Description

Saddle Moving Surface Grinding Machine SGA4080 Feature

·AH: Hydraulic longitudinal feed, Manual cross and vertical feed

·AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed

·AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed

Specifications	SGA4080AH	SGA4080AHR	SGA4080AHD
Table size	406x813mm	406x813mm	406x813mm
Magnetic chuck size	400x800mm	400x800mm	400x800mm
Max. distance from spindle to table	580mm	580mm	580mm
Table cross travel	450mm	450mm	450mm
Table longitudinal travel	910mm	910mm	910mm
Max. load capacity of table (include chuck)	500kg	500kg	500kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross motion
Intermittent feed rate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div	0.02mm/div	0.02mm/div
Vertical motion
Auto down feed rate	/	/	0.005-0.5mm/t
Rapid down speed	/	650	480
Feed of handwheel	0.005mm/div	0.005mm/div	0.005mm/div
Spindle rotating speed	1450r/min (50HZ), 1750r/min (60HZ)
Grind wheel size	350x40x127mm
Spindle motor power	4kW
Floor space	3600x2400x1900mm
G.W.	3400kg
Packing size	285x227x221cm

Standard Accessories		Optional Accessories
Electrical magnetic chuck		Luxurious splashing board
Coolant tank		Parallel wheel dresser
Balancing arbor		Oil tank guard
Wheel flange and wheel		Digital readout for Y/Z axis
Wheel extractor		Balancing stand
Standard dressing stand(not include diamond pen)		Include diamond pen
Leveling wedge		Magnetic separator apparatus
Tools and tool box		Magnetic separator and paper filter coolant tank
		Paper filter apparatus
		Dust collector

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

---
