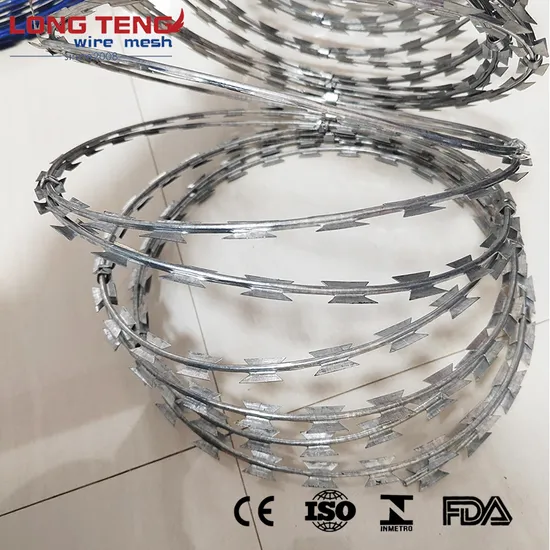

Glavanized Bto-22 Cbt-65 Concertina Razor Barbed Wire for Security

Product Description

Product Description
Razor barbed wire, anti rust concertina razor barbed wire also known as blade barbed wire, anti rust concertina razor barbed wire is a kind of new safety net. The blade barbed rope has the advantages of beautiful appearance, economical and practical, good anti blocking effect, convenience in construction and other excellent characteristics, at present, anti rust concertina razor barbed wire has been widely used in many countries, industrial and mining enterprises, garden apartments, border posts, prisons, detention center, government buildings and other countries safety facilities.
1.Material: stainless steel wire,galvaized wire
The blade barbed wire can be divided into different installation methods:
a Spiral b linear type c spiral type cross three forms.

2.Specification

Blade barbed wire specification
Model	Mesh Aperture	Production form
1.8m*3m	30*15 15*7.5	BTO-12 BTO-18 BTO-22 CBT-65
1.8m*6m	30*15 15*7.5	BTO-12 BTO-18 BTO-22 CBT-65
1.8m*9m	30*15 15*7.5	BTO-12 BTO-18 BTO-22 CBT-65
1.8m*12m	30*15 15*7.5	BTO-12 BTO-18 BTO-22 CBT-65
1.8m*15m	30*15 15*7.5	BTO-12 BTO-18 BTO-22 CBT-65

specification	shape	thickness	wire diameter	blade length	blade width	blade spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22	BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28	BTO-28					46±1
BTO-30						46±1
CBT-65		0.5±0.05	2.5±0.1	65±2	21±1	100±2

3.Razor wire classification: BTO and CBT
BTO: BTO-10 BTO-18 BTO-22 BTO-28 BTO-30
CBT: CBT-60 and CBT-65 CBT-60 and CBT-65

4.Surface treatment : galvanized ,pvc coated
5.Application: prisons, government agencies, banks, private houses
6. Packing:Export standard package, Customer's special demand is also available, loading into container.

---
