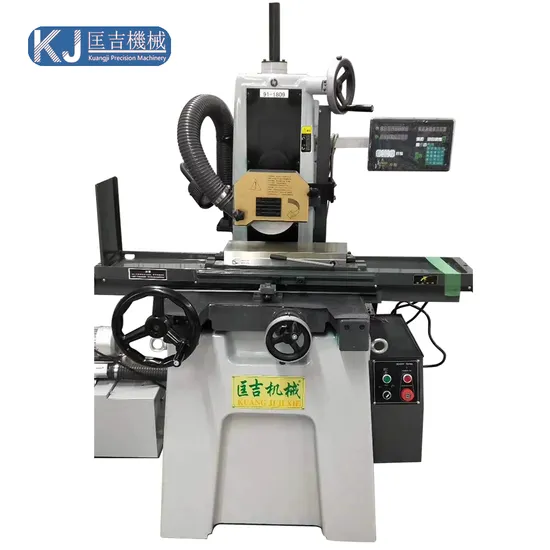

High Precision Surface Grinding Machine Psgs-618m Mini Manual Flat Surface Grinder Machine

Product Description

This machine tool is mainly used to grind steel, cast iron and non-ferrous metals and other materials around the grinding wheel. According to the material and shape of the workpiece, different clamping and positioning methods can be used. General plane, can be used electromagnetic sucker or directly fastened to the work table for grinding; Plane, right Angle, arbitrary Angle, cylindrical end face, etc., can be grinding on the fixture (fixture customer self-made).

	Specification class		PSGS-618M
ability	Table area		460×150mm
	Maximum left and right movement		475mm
	Maximum amount of movement before and after		185mm
	Maximum distance from table to spindle center		380mm
	Maximum weight of table		120kg
workbench	Table T-slot		14mm×1
	speed of table		/
	Front and rear hand wheel feed	1 frame	0.01mm
		1 round	3mm
	Automatic feed front and rear		/
	Dart back and forth	50HZ	/
		60HZ	/
grinding wheel	Grinding wheel size		φ180mm×6~20×φ31.75mm
	speed of mainshaft	50HZ	2850rpm
		60HZ	3360rpm
up-down structure	Upper and lower hand wheel feed	1 frame	0.005 mm
		1 round	1mm
	Automatic feed rate		/
	Rapid up and down movement		/
motor	spindle motor		2HP
	Up and down drive motor		/
	hydraulic motor		/
	Flush motor		1/8HP
	Vacuum motor		3/4HP
size	Machine height		1995mm
	occupied area		1800mm×1200 mm
	net weight		700kg
	rough weight		850kg

---
