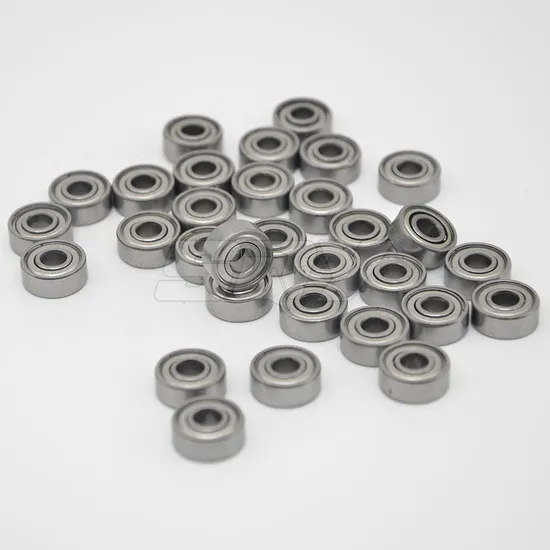

Long Life Deep Groove Ball Bearing 6700 6800 6900 6000 6200 6300 Zz 2r 2z RS of NSK NTN Koyo NACHI Mcgill IKO for Agricultural Machinery

Product Description

Long life Deep Groove Ball Bearing 6700 6800 6900 6000 6200 6300 Zz, 2r, 2z rs of NSK NTN Koyo NACHI Mcgill IKO for Agricultural Machinery
Deep groove ball bearing is the most widely used ball bearing type.
According to the precision level, we produce P0<P6<P5<P4 classes ball bearings.
P0(ABCE-1) =+0-0.007MM; P6 (ABCE-3) =+0-0.006MM; P5 (ABCE-5) =+0-0.0005MM; P4 (ABEC-7) =+0-0.004mm;
Level P0 bearings are used in most scenarios, while P5/P6 level are always used on high precision application, such as aerospace aviation field.
According to the noise level, we produce Z1.Z2.Z3.Z4 level.
The Z1 decibel value is 33-38 decibels; The Z2 decibel value is 28-32 decibels; The Z3 decibel value is 22-25 decibels; The Z4 decibel value is 15-21 decibels;
About Deep Groove Ball Cearing
6000 Series - Extra Light Ball Bearings - Ideal for limited space applications 6200 Series - Light Series Ball Bearings - Balanced between space and load capacity 6300 Series - Medium Series Ball Bearings - Ideal for heavier load capacity applications Detailed Photos

Bearing Number	principal dimensions(mm)				Weight (Kg)
	d	D	B	rsmin
6700	10	15	3	0.1	0.0015
6800	10	19	5	0.3	0.005
6900	10	22	6	0.3	0.009
6000	10	26	8	0.3	0.018
6200	10	30	9	0.6	0.032
6300	10	35	11	0.6	0.052
6701	12	18	4	0.2	0.003
6801	12	21	5	0.3	0.006
6901	12	24	6	0.3	0.010
16001	12	28	7	0.3	0.019
6001	12	28	8	0.3	0.022
6201	12	32	10	0.6	0.037
6301	12	37	12	1.0	0.060
6702	15	21	4	0.2	0.0035
6802	15	24	5	0.3	0.007
6902	15	28	7	0.3	0.015
16002	15	32	8	0.3	0.027
6002	15	32	9	0.3	0.031
6202	15	35	11	0.6	0.045
6302	15	42	13	1.0	0.083
6703	17	23	14	0.2	0.004
6803	17	26	5	0.3	0.011
6903	17	30	7	0.3	0.017
16003	17	35	8	0.3	0.033
6003	17	35	10	0.3	0.041
6203	17	40	12	0.6	0.067
6303	17	47	14	1.0	0.113
6403	17	62	17	1.1	0.270
6704	20	27	4	0.2	0.005
6804	20	32	7	0.3	0.017
69014	20	37	9	0.3	0.037
16004	20	42	8	0.3	0.048
6004	20	42	12	0.6	0.068
6204	20	47	14	1.0	0.107
6304	20	52	15	1.1	0.145
6404	20	72	19	1.1	0.400
6022	22	44	12	0.6	0.074
6222	22	50	14	1.0	0.119
6322	22	56	16	1.1	0.179
6705	25	32	4	0.2	0.006
6805	25	37	7	0.3	0.021
6905	25	42	9	0.3	0.042
16005	25	47	8	0.3	0.059
6005	25	47	12	0.6	0.079
6205	25	52	15	1.0	0.129
6305	25	62	17	1.1	0.235
6405	25	80	21	1.5	0.530
6028	28	52	12	0.6	0.096
6228	28	58	16	1.0	0.175
6328	28	68	18	1.1	0.287
6706	30	37	4	0.2	0.008
6806	30	42	7	0.3	0.024
6906	30	47	9	0.3	0.052
16006	30	55	9	0.3	0.087
6006	30	55	13	1.0	0.116
6206	30	62	16	1.0	0.199
6306	30	72	19	1.1	0.345
6406	30	90	23	1.5	0.735
6032	32	68	13	1.0	0.122
6232	32	65	17	1.0	0.250
6332	32	75	20	1.1	0.389
6807	35	47	7	0.3	0.027
6907	35	55	10	0.6	0.075
16007	35	62	9	0.3	0.107
6007	35	62	14	1.0	0.151
6207	35	72	17	1.1	0.284
6307	35	80	21	1.5	0.464
6407	35	100	25	1.5	0.952
6808	40	52	7	0.3	0.031
6908	40	62	12	0.6	0.112
16008	40	68	9	0.3	0.130
6008	40	68	15	1.0	0.190
6208	40	80	18	1.1	0.336
6308	40	90	23	1.5	0.636
6408	40	110	27	2.0	1.230
6809	45	58	7	0.3	0.038
6909	45	68	12	0.6	0.126
16009	45	75	10	0.6	0.167
6009	45	75	16	1.0	0.241
6209	45	85	19	1.1	0.420
6309	45	100	25	1.5	0.829
6409	45	120	29	2.0	1.530
