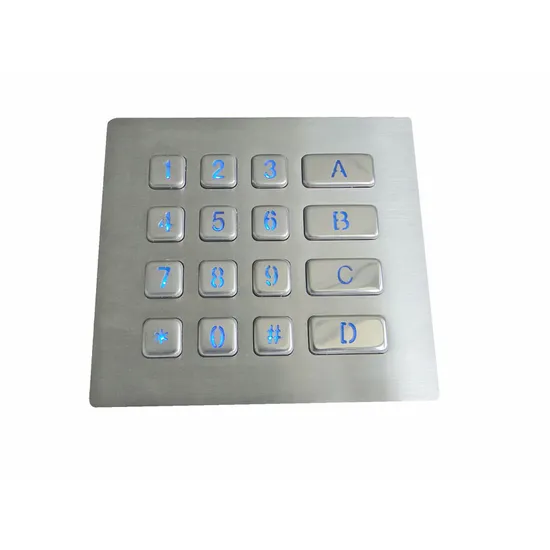

16 Full Travel Backlight Keys Metal Keypad

Product Description

Rugged illuminated NEMA 4 keypad with 16 back-lit keys, ideal for indoor or outdoor access control system or other low-lit or dark environments
Part Number:MKP120-16BL

Technical Specification
Material
Front panel	304 stainless steel
Keys	304 stainless steel
Back panel	Aluminum
Number of Keys	16
Matrix	4 x 4
Function
Backlight or Non backlight	LED backlight illuminated
Color of backlight	Red,Green or Blue
Electrical Data
Interface	USB or PS/2 or RS232 (With electronic controller board) 11PIN connector (Without electronic controller board)
Certification	CE,FCC
Environmental Characteristics
Operating temperature	-20º C to + 60º C
Key travel	2.0mm
Lifetime (cycles)	Min 5, 000, 000 actuations
Sealing protection	IP65/NEMA4X from the front
Layout	Customizable available
Dimension	120.00 x 110.00 mm(W x D) (front panel)
Application	access control system, vending machine, public phone or other application in dark or low-lit environment

Company Information:

KINGLEADER is an ISO9001:2008 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2008 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 10 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
