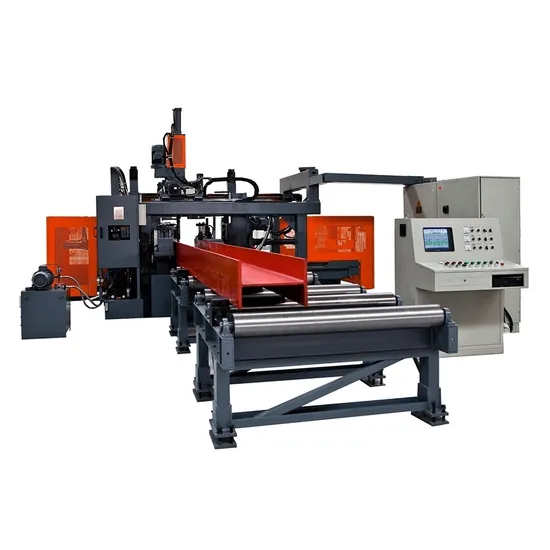

CNC Three-Dimensional Drilling Machine for H-Beams and Channel

Product Description

Product Description

Apply scope:
This equipment is mainly used for drilling H-beam, box-type beam, channel steel, angle steel and other workpieces in the construction of steel structures, bridges, solid parking garages, oil platforms and other industries. Adopt CNC control system of PLC+ main computer to ensure the high precision positioning and easy operation.
Product structure characteristics:
1. Drilling power head with automatic travel. Seven CNC shafts, each CNC axis can do two-coordinate CNC movement and drilling movement. Thus, drilling holes can be drilled simultaneously on three sides of H-section steel. Holes can be drilled in a group of holes without moving the workpiece.
2. Roller feeding and longitudinal numerical control measurement.
3. Detection of web and wing deformities and horizontal and vertical clamping of H-beam.
4. Two side power heads, one is fixed and the other is movable, can meet the drilling requirements of different H-section steel.
5. High quality atomization cooling and lubricating device ensures cooling and lubricating effect in drilling process and prolongs service life of drill bit.
Technical parameters:

Model		CBD700	CBD1000		CBD1250
Workpiece dimensions (web ×flange)(mm)	Max. size	700×400	1000×500		1250×600
	Min. size	100´50	150×75
Length (mm)	Auto feeding	≥3000
	Manual feeding	≥690
Max.workpiece weight(kg)		5000	8000		10000
Thickness of web and flange(mm)		50	80
Drilling dia(mm)	Vertical Drilling	φ12-30	φ12-33.5
	Horizontal Drilling	φ12-30	φ12-26.5
Drilling spindles	Quantity of spindle	One spindle on each side (top,left,right) Total:3spindles
	Rotating speed(rpm)	180-560
	Max. feeding axial stroke	Left and right: 140 Top: 240 or 325
	Feeding speed (rpm)	20-300
	Movement of spindle in left/right	In the direction of length of workpiece
		Above vertical level: 30-380		Above vertical level: 30-470		Above vertical level: 30-570
	Movement of spindle in vertical	In the direction of length of workpiece
		Under horizontal level: 45-620		Under horizontal level: 45-910		Under horizontal level: 45-1160
Size of machine (L*W*H) (mm)		3600 ´ 1500 ´ 2500		4450 ´ 2400 ´ 3300		4700 ´ 2400 ´ 3300
Total power (KW)		35K
Machine weight (KG)		5500	7000			8000

---
