Product Details
Product Description
Product Description

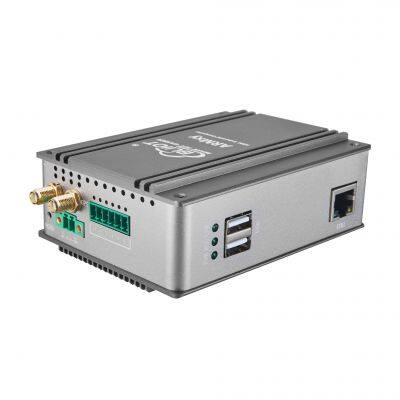

The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz. The device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM. Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.
The BL410 series ARM embedded computer offers a rich array of interfaces including 1-3 10/100M Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series I/O board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL410 also supports hardware decoding of 1080P@60fps videos.
Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
The BL410 series ARM embedded computers support Linux-4.19.232, Linux-RT-4.19.232 kernels, Ubuntu20.04, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools. In addition, BL410 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamlessintegration with various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL410 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410.
The BL410 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.
Product Selection Guide
The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL410-SOM410-X10, means 1 Ethernet port, 8GB eMMC storage, LPDDR4X is 1GByte, and 2 RS485
If you need to add WiFi, then you would append "W" to the host model number. For example: BL410W-SOM410-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL410L-SOM410-X10
ARMxy BL410 Model List
| Model | ETH | USB | HDMI | X board IO
Slot | Y board IO
Slot | Dimension |
| BL410 | 1x10/100M | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL410A | 1x10/100M | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL410B | 1x10/100M | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL410C | 1x10/100M | 2 | X | 1x10PIN | X | 42x83x110mm |
| BL411 | 2x10/100M | 2 | X | 1x6PIN | X | 42x83x110mm |
| BL411A | 2x10/100M | 2 | X | 1x20PIN | X | 42x83x110mm |
| BL411B | 2x10/100M | 2 | X | 1x20PIN | 2 | 48x83x110mm |
| BL412 | 3x10/100M | 2 | 1 | 1x6PIN | X | 42x83x110mm |
| BL412A | 3x10/100M | 2 | 1 | 1x20PIN | X | 42x83x110mm |
| BL412B | 3x10/100M | 2 | 1 | 1x20PIN | 2 | 48x83x110mm |
ARMxy BL410 SOM Model List
| Model | MCU | Clock Speed | Kernel | NPU | eMMC | DDR4 | Temperature |
| SOM410 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 8GByte | 1GByte | -40~85°C |
| SOM411 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 16GByte | 2GByte | -40~85°C |
| SOM412 | RK3568J | 1.8GHz | 4 x A55 | 1TOPS | 32GByte | 4GByte | -40~85°C |
| SOM413 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 4GByte | 1GByte | 0~70°C |
| SOM414 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 8GByte | 2GByte | 0~70°C |
| SOM415 | RK3568B2 | 2.0GHz | 4 x A55 | 1TOPS | 8GByte | 4GByte | 0~70°C |
>>
