Impact Resistance Customized CAD Series CNC Angle Marking Punching Shearing Line

Product Description

Impact Resistance Customized CAD Series CNC Angle Marking Punching Shearing Line
Product Description
Apply scope:
The production line is suitable for power towers, communication, steel structure bar marking, and drilling.
Technology Parameter

Моdel		BL2532	BL3635	ADM2532			ADM3635	CDP3635
Processing size	Min. Angle size (mm)	L140x140x10
	Max. Angle size (mm)	L250x250x32	L360x360x35	L250x250x32			L360x360x35	L360x360x35
Drilling spindle	mber of drilling head in every side	3
	Spindle model	Morse #4		BT40
	Max. Drilling diameter(mm)	Æ26	Æ40	Æ26
	Spindel speed (rpm)	180 - 560		180 - 6000
	Adjustment range of distance between hole and back line of angle(Axis-Y in side A and B)	20-220	20-340	50-220			50-330	50-330
Typing ability	Typing force(KN)	1030
	Group number for marking	1
	Qty. Of marking characters	15
	Character's size(mm)	14*10*19
Feeding speed(m/min.)		30-80		30-80			40-80	40-80
Feeding way		Trolley servo feeding
Processing accuracy		Accord with GB2694-2010
Programming mode		Input the parameters by software or CAD drawing transfer
Function of program		Real-time monitoring, Fault display, Fault alarm , etc.
Dimension (L*W*H) (m)		29*8.9*2.5	29*8.9*2.5		30*7.5*3	33*9*3		29*8.5*3

Product structure characteristics:

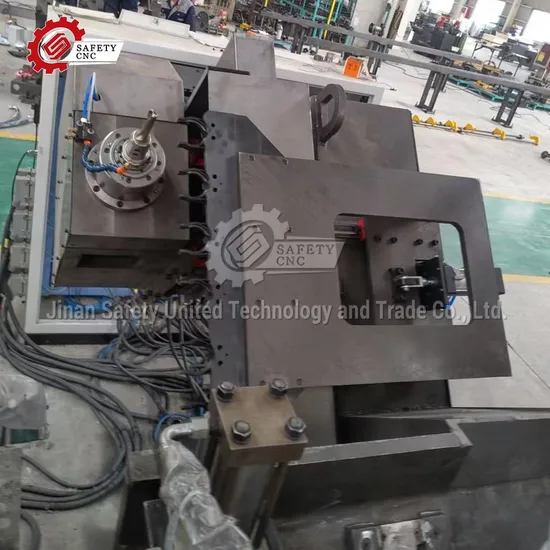

The machine is mainly composed of a lateral feed table, overturn feeding, feed channel, CNC trolley marking, typing unit, drilling
unit, press unit, finished material channel, hydraulic system, pneumatic system, control system, and so on.
1.The use of numerical control technology, servo motor feeding, high efficiency, and stable operation.
2. Key hydraulic, pneumatic, and c, and electrical components all use domestic and internationally famous brands.
3 . Programming simple program data that can be used directly lofting software generated.
4 . Poftware for the English interface, easy to operate, can display the working graphics.
5 . Feeding, marking, drilling, and unloading are automatically carried out.
6 . Simply input the workpiece size.hole distance.stadia.the number of jobs.work procedures or directly using the CAD/CAM
software to generate the lofting.
7 . The machine has material support anthe d vertical pressing device can adapt to a bent angle.
8 . With no cutting function, you can set the size of the material.
9. Fault self-diagnosis function.
10. The user can choose to add the shear unit, and the shear unit is a double edge shear.
Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are manufacturer
Q2: Can the machine parts be changed according to my requirements?
A2: Yes, we will try our best to give you the best products.
Q3:What is your payment term?
A3:30% T/T deposit paid in advance, 70% balance paid before shipping
Q4: How can I get to your factory?
A4:We could pick you up at the airport or high-speed rail station.
Q5: What service can you provide before order?
A5:About the pre-sale service. We provide you answers to all your questions on our machines, such as technical parameters, price, payment terms, etc. If you wanna visit our factory and check the machines, we also can send you an invitation letter and give you our warmest welcome
Q6: Can you finish the machine during the delivery time?
A6:We will finish the machine in time according to determined lead time

---
