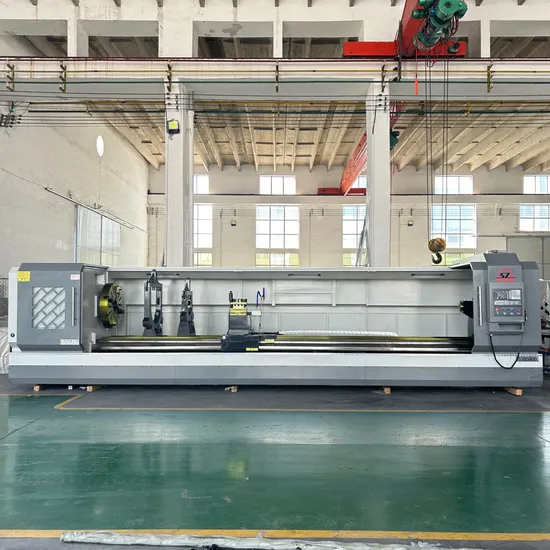

OEM High Quality Horizontal Automatic Lathe Machine 105 Single Spindle Bore Flat Bed CNC Lathe Machine

Product Description

Product Description
Horizontal CNC lathes are one of our company's leading products. These lathes feature a large spindle bore design, excellent bed rigidity, and a compact structure. The machines are capable of machining various shaft and disk parts, as well as turning threads, arcs, tapers, and complex internal and external curved surfaces of rotary bodies. They are particularly well-suited for industries such as automotive, metallurgy, and aerospace, offering efficient, high-volume, and high-precision machining of rotational parts.
Processing effect
Product Parameters

Number	Items		CK61100	CK61110
1	Max. diameter swing over the bed	mm	1000	1100
2	Max. diameter swing over the tool holder	mm	780	780
3	Max. workpiece length	mm	1000,3000-100000
4	Spindle hole diameter	mm	105	105
5	Tool holder	Optional	4 station 280×280	4 station 280×280
6	Chuck	Optional	800mm 4-jaw
7	CNC system	Optional	GSK980TDi
8	Spindle speed steps		Hydraulic four-gear Manual four-speed
9	Spindle speed range	R.P.M.	1st gear 17-70 rpm 1st gear 20-80 rpm 2nd gear 38-155 rpm 2nd gear 50-200 rpm 3rd gear 75-293 rpm 3rd gear 100-330 rpm 4th gear 170-653 rpm 4th gear 220-7690 rpm
10	Motor	KW	15	15
11	Frequency converters	KW	15	15
12	Tail stock(tailstock spindle diameter)	mm	140	140
13	Width of the guide rail	mm	600	700
14	Cooling pump motor	K	90	90
15	Max.load capacity	T	2	2
16	Lenght/Weight	mm kg	1000mm 5100kg 1500mm 5800kg 2000mm 6300kg 3000mm 7000kg 4000mm 7500kg	1000mm 5300kg 1500mm 6000kg 2000mm 6800kg 3000mm 7900kg 4000mm 8500kg

Product Details
We offer a full range of horizontal CNC lathes, including small CNC lathe models such as CK0640, CK6140, CK6150, and CK6163, as well as medium and large CNC lathes such as CK6180, CK61110, CK61125, CK61140, CK61160, and CK61180. Please feel free to contact our sales team to determine the right lathe model based on your machining requirements.
Company Profile
Xingtai Kuncheng Machinery Manufacturing Co., Ltd., established in 2016, is a modern enterprise specializing in the production and sales of general-purpose equipment. The company's main products include manual lathes, CNC lathes, forklifts, and packaging machines, which are widely used in various industrial manufacturing and logistics fields. Since its establishment, the company has adhered to the business philosophy of "quality first, customer foremost," continuously introducing advanced technologies and equipment to improve product quality and meet the diverse needs of its customers. With high-quality products and comprehensive services, Kuncheng Machinery has established a strong reputation and credibility in the industry.
Exhibition
Packaging & Shipping
FAQ
What is the nature of our company?
We are a factory that integrates manufacturing and sales. Not only do we produce machinery and equipment, but we are also actively expanding both domestic and international markets.
What is our company address? Do we support on-site visits?
Our company is located in Renze District, Xingtai, Hebei, China. Of course, we welcome you to visit our factory for an on-site inspection at any time.
What after-sales service do we provide?
We provide a one-year after-sales service. If you require on-site machine commissioning, we can also offer the corresponding service.

---
