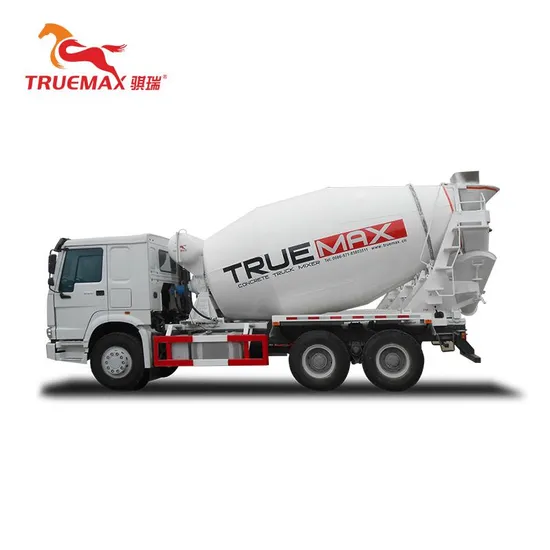

China Truemax Concrete Machinery 10 Cbm 12.6t Heavy Duty HOWO 6X4 Transit Mobile Self Loading Cement Concrete Mixer Truck

Product Description

Production information:

China Truemax Concrete Machinery 10 cbm 12.6t Heavy Duty HOWO 6x4 Transit Mobile Self Loading Cement Concrete Mixer Truck
Model	UNIT	3m³	6m³	8m³	9m³	10m³	12m³	14m³
Mixer Type	/	Dry/Wet
Geometric Volume of Drum	m³	4.45	9.6	11.8	14.4	14.4	18.4	20.4
Material of Drum&Blades	/	Q345
Inclination Angle for Drum	/	16	15	16	13	13.5	12	12
Padding Rate	%	67.4	63.8	67.8	62.5	69.4	65.2	68.6
Residual Rate	%	<0.2
Charging Speed	m³/min	>=3
Discharging Speed	m³/min	>1
Mixing Speed	r/min	0-14						2-14
Hydraulic Pump	/	Interpump		Rexroth
Hydraulic Motor	/	Interpump		Rexroth
Reducer	/	Lead374		ZFP4300			ZFP5300
Radiator	/	KT18
Capacity for Water Tank	L	240			350		450
Water Supply	/	Air/Elecrtical Pump
Slump Range	mm	50-210
Water Supply Pressure	Mpa	0.2	0.3
Overall Dimension(L*W*H)	mm	3968*1920*2065	5414*2400*2446	5800*2500*2816	6640*2495*2652	6190*2600*2696	7500*2600*2870	8000*2450*2906

Chassis of concrete truck mixer
Vehicle Model	Sinotruk	Sinotruk	Sinotruk
Chassis Model	ZZ5128F3915	ZZ1257N3841W	ZZ1317N3261W
Tail Gas Exhaust Standard	Euro III - Euro V	Euro II - Euro V
Engine Model	YC4D140-33	WD615.69	WD615.47
Engine Power (KW)	102	247	273
Rated Load (kg)	7500-12500	15000-35000
Drive Type	4*2	6*4	8*4
Max. Travel Speed (km/h)	90
Typre Type	9.00R20*7	11.00-12.00R20
Wheelbase (mm)	3900	3825+1350	1800+3200+1350
Applicable to Concrere Truck Mixer (m³)	3-5	6-10	10-14
Overall Dimension (L*W*H) (mm)	6755*2440*2800	9020*2496*3835	10611*2496*3990
Total Weight (kg)	8755-11500	12500-16500
Others	Seat with air bag; Air conditioner; Other chassis can be customized

1.Blade's unique wear-resistance design: Use the samewear-resistant materialas drum body to improve wear resistance; Added wearing strip in the end to extend service life; Using advanced blade design, the filling rate is higher, and the drum body loading capacity is increased by 5%. 2.Advanced drum body production technology and efficient mixing technology: The slump of concrete varies by ≤5% at each stage, and
the residual rate is as low as 0.2%.
3.Multi-layer wear-resistant liners are used in the feeding and discharging chutes, which increase the service life by 50%.
4.The key parts been produced by plasma cutting technology: High precision and productivity.
5.Overall shot blasting derusting technology: Improve painted adhesive force and anti-corrosion.
Concrete mixer truck is to transport the concrete or mortar that has been stirred in the concrete mixer to the construction site. Since the mixing tank of the concrete mixer truck can be rotated and adjustable, the concrete mixer can be transported to the maximum. The guarantee of the limit is not separated during the specified distance and time of transportation, the coarse aggregate does not settle, and the good workability is maintained. The concrete mixer truck is mostly used for the construction of commercial mixing stations and large projects.
Product advantages:
Multi Types of Chassis Match
The upper can be designed to match with different chassis as requirement.
High Performance Mixing Drum
1. Double logarithmic variable pitch helical mixer blade enables higher charging and discharging peed and equal mixing, eliminates segregation phenomenon.
2. New technology T-shape Blade, it is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service
Life of the agitator drum.
3. Adopt special wear-resistant steel, substantially increased mixing drum and blade wear-resisting property and working life, as experimental data confirmation, increased working life 60%-80%.
World Famous Hydraulic Transmission Parts
Key hydraulic accessories include: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor and reducer are all made by internationally known brands such as, Rexroth, Eaton, SAUER, PMP, Bonfiglioli, and ZF.
Structure And Appearance Industrialize Design
Optimization design to all exterior structure, enhance integral strength, more aesthetically and comfortable
Pneumatic Water Supple System And Multi-outlet Washing Design
1. Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and
Discharging hopper respectively.
2. Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.
Advanced paint coating
Shot blasting to steel surface, strengthen surface strength, and enhance painted adhesive force, resistance to corrosion improve 20%; Use airless
Paint, high temperate drying, increase by painted glossiness, prolong working life.
Colors Can Be Customized
Production Show:
Parameters Of 10CBM Concrete Mixer Truck
Upper part

Geometric volume of drum(m³)	14.4	Capacity for water tank(L)	350
Material of drum/blades	Q345B	Slump range(mm)	50-210
Inclination angle for drum(°)	13.5	Water supple pressure(MPa)	0.3
Padding rate(%)	69.40%	Max. External diameter of drum(mm)	2342
Residual rate(%)	<0.2	Length of the drum(mm)	4744
Feeding speed(m³/min)	≥3	Upper-fixing Length(mm)	6190
Discharging speed(m³/min)	>1	Subframe Length(mm)	5100
Mixing speed(r/min)	0-14	Chute Position(mm)	1090
Hydraulic pump	Rexroth A4VTG90	Center of Gravity when Fully Load(mm)	2768
Hydraulic motor	Rexroth AA2FM90	Hopper Height(mm)	2538
Reducer	ZF P5300	Upper-fixing Height(mm)	2696
Radiator	KT-18	Overall dimension(L*W*H/mm)	6190*2600*2696

HOWO Chassis (Or according to Customer)

Chassis Model	ZZ1257N3841W	Overall dimensions (mm)	9220*2500*3930
Curb weight	9900 kg	Driving type	6X4
Rated loading capacity	25000 kg	Cabin	Left, 2 seats, with sleeper, with air conditioning
Engine	Type	WD615.69
	Rated Power	247kW/336HP
	Displacement	9726ml
	Fuel type	Diesel oil
	Emission standard	Euro 2
Max speed	90(km/h)	Approach/departure angle		16/33°
Front suspension	1500mm	Rear suspension		1400mm
Wheel base	3825+1350mm	Color and logo		Can according to customer's requests

Company profile
Zhejiang Truemax Engineering Co Ltd. is a manufacturer and high-tech enterprise integrating R&D, design, manufacturing and marketing.As the company's core industry,engineering construction machinery currently mainly covers three series:concrete machinery,crushing machinery and construction machinery
Truemax insists on a high starting point and high quality, and uses 5% of its sales revenue every year on technologe research and development, trying to making high-end products. In terms of management, Truemax adopts the 6S management system,so quality control is strictly implemented in all aspects of parts procurement, production, packaging and shipment,which makes our products reach the international advanced level.
Truemax actively responds to the national "Made in China 2025" strategy and the call of energy conservation and environmental protection.With the help of the national "One Belt and One Road" strategy, it continues to introduce professional talents and advanced technology. Through unremitting efforts, our services reach every corner of the country. Users anywhere in the country can get thoughtful and meticulous service.
FAQ
Q: Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No. 118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China

---
