Waterproof IP65 Outdoor Time Attendance Fingerprint Terminal Biometric Fingerprint Safe Elevator Access Control System

Product Description

Waterproof IP65 Outdoor Time Attendance Fingerprint Terminal Biometric Fingerprint Safe Elevator Access Control System Overview:

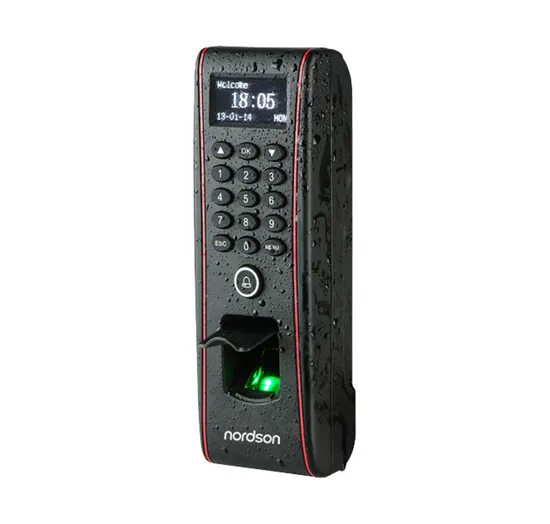

FR-W1600 is IP65 rated waterproof enclosure permits this reader to be used for outdoor applications.it is Reliable, durable and highly accurate fingerprint sensor with finger algorithm provides less than 1.5 second user recognition. Works without computer. Complete setup and programming can be done via keypads and embedded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay Outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple timezones and personnel groups for programming valid entry zones. Can store up to 3000 fingerprint templates, 10,000 cards and 30000 transactions. The data can be backed up to a SD Card and can also be transferred to another reader in the absence of computer connectivity. Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.
Function:
1.Waterproof IP65 and Resistance to Low Temperature (as low as -40 °C/40°F).
2.Embedded Linux OS
3.Fingerprint capacity:3000
4.ID Card capacity:30,000(option)
5.capacity:50000
6.Communication:TCP/IP, RS232/485
7.Full Access Control Features:Anti-passback,Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbellbutton,alarm,door bell
8.Wiegandinput&output
Specification:

Type	IP65 Waterproof Fingerprint Access Control with Time Attendance Terminal
Fingerprint Capacity	3,000
RF Card	10,000 EM(125 KHz)
Record Capacity	50,000
LCD	128 x 64 OLED with white color
Memory	128MB flash + 32MB RAM
Keypad	3 x 5 keypads & doorbell
Communication	TCP/IP, RS232/485,USB-Host
Full Access Control Features	Anti-passback.Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
Optional Functions	Mifare(optional)
Wiegand Signal	Input and Output
Authentication	Finger / PIN / Card
Power Supply	DC 12V
Verification Speed	≤0.5 sec
Operating Temp.	-10 °C~50 °C (14°F ~ 122°F)
Operating Humidity	20%-80%
Dimension	62.5mm×185mm×41.5mm (W×H×D)
Gross Weight	1.5kg

---
