US$7,000.00-9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Swing Over Cross Slide
255mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

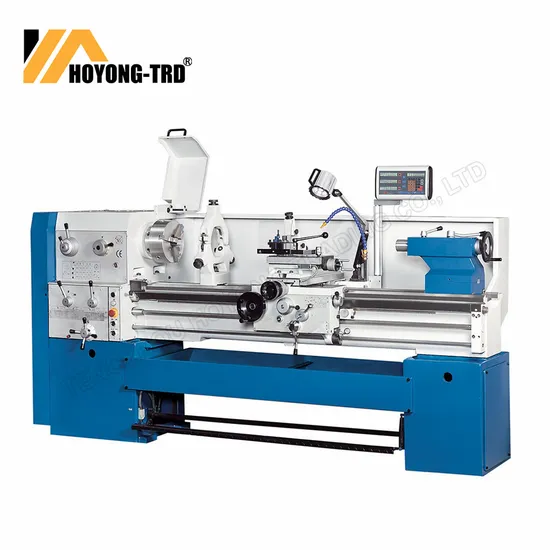

CDC Series Large Spindle Hole Precision Lathe
Over sized spindle bore of 80mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand.
Outward appearance of machine features large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened (HB450 plus).
All gears hardened and ground by Reishauer grinding machine.
Leadscrew and feed-rod interlocked, both with overload protection.
Automatic feed stopper.
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Halogen lamp; Quick change; Tool post; DRP; T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake; Forced lubrication system.
SPECIFICATIONS:
| MODEL | CD6240C | CD6250C | CD6260C |
| CAPACTIES | Max. swing over bed mm | 400 | 500 | 600 |
| Max. swing over cross slide mm | 225 | 325 | 360 |
| Max. swing in gap mm | 530 | 630 | 730 |
| Center distance | 1000,1500, 2000mm |
| Cross slide travel mm | 330mm |
| SPINDLE | Spindle hole | 80mm |
| Spindle nose | ISO-C8 or ISO-D8 |
| Spindle taper | Metric 85mm |
| Spindle speeds | 24-1600rpm (15 Steps) |
| FEEDS | Metric threads range (Kinds) | 0.5-28mm (66Kinds) |
| Inch threads range (Kinds) | 1-56tpi (66 Kinds) |
| Module threads range (Kinds) | 0.5-3.5mm (33 Kinds) |
| Diametral threads range (Kinds) | 8-56 DP (33 Kinds) |
| Longitudinal feeds range(kinds) | 0.072-4.038mm/reV
(0.0027-0.15inch/rev)(66kinds) |
| Cross feeds range (kinds) | 0.036-2.019mm/reV
(0.0013-0.075nch/rev)(66kinds) |
| Rapid traveling speed of carriage | 5m/min(16.4ft/min) |
| Leadscrew size:Diameter pitch | 35mm/6mm or 35mm |
| CARRIAGE | Cross slide travel | 300mm |
| Compound rest travel | 130mm |
| Cross-section size of tool shank | 25x25mm |
| TAILSTOCK | Spindle diameter | 65mm |
| Spindle taper | Morse No. 5 |
| Spindle travel | 120mm |
| Main motor | Main drive motor | 4.0kw or 5.5kw | 7.5kw |
| Coolant pump motor | 0.125kw |
| Rapid traverse motor | 0.12kw |
| Net weight/Gross weight(kg) | 1000mm | 1640/2290 | 1700/2350 | 1800/2500 |
| 1500mm | 1850/2250 | 1910/2610 | 2010/2760 |
| 2000mm | 2090/2860 | 2150/2920 | 2250/3070 |
PACKING SIZE
(L*W*D) | 1000mm | 2420*1150*1800mm |
| 1500mm | 2920*1150*1800mm |
| 2000mm | 3460*1150*1800mm |
>>
