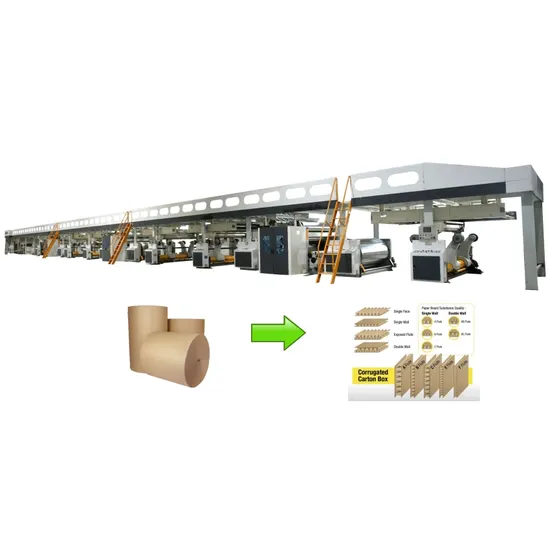

Qh Pack High Speed Corrugated Cardboard Production Line Make Machine

US$190,000.00
1 Piece
US$188,000.00
2+ Pieces

Basic Info.

Model NO.
1800
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Paper
Paper Thickness
Normal Specification Paper
Product Name
Corrugated Cardboard Production Line
Speed
60-80m/Min
Other Name
3ply Corrugated Line
Function
Corrugated Cardboard
Transport Package
Film Packaging
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000

Product Description

Product Description WJ100-1800-3PLY CORRUGATED CARDBOARD PRODUCTION LINE CONFIGURATION LIST
No.
Name
Qty
Feature
1
RS Electrical Mill Roll Stand
()
( with trolley and track)
3 ,,,,
--Toothed chuck,manual discbrakes,pneumatic mechanically actuated lift,panning left and right on the middle
4500mm,10mm
--Guide rail length is 4500 mm, the trolley adopt 10 mm plate welding
2
PH-60 Pre-heater
2 φ600mm;,360°
--The roller φ600 mm,Electric adjustment angle,adjusting heating area within the range of 360 °
3
SF-10A(280) Single Facer
1 φ280mm,48CrMo,;,;;,;
--Corrugated rollerφ280mm, 48CrMo high quality alloy steel,plating chromed
--Independent gearbox,universal joint drive structure
--Cylinder control lifting
--Pneumatic control glue,circulating supply glue
4
OB Conveying Bridge
1 20063;;,
--The main beam is connected with the GB 200 channel steel,63 angle steel
--Independent frequency motor drive paper conveying
--Suction tension and electric correcting
5
Duplex Pre-heater
1 φ600mm;,360°
--The rollerφ600 mm,electric adjustment angle angle,adjusting heating area within the range of 360 °
6
GM-15 Glue Machine
1 φ269mm,25;;;,PLC;
--Glue roller φ269mm,carved 25 line pit type mesh
--With preheater device
--Independent frequency motor drive
--Circulating supply glue with PLC control
--Man-machine interface display
7
DF-40 Double Facer
1 360 mm ;600 mm *9;4;,;;
--Main frame is 360 mm GB channel steel
--Hot plate 600 mm 9 pics with plating chrome;
--4 M cooling section
--Adopt pressure bar lifting by pneumatic control
--The upper belt correct automatically
--Frequency motor drive
8
SS-E Electric Blade Machine
1 ,200mm;;;;58
--Blade adopt tungsten alloy steel,φ200mm
--Electric adjusting and correcting --Automatically grinding
--Manual adjust the scorer
--5 blade 8 line
9 NC Cut-Off(Straight)
1 ;;;;10.4
--Full AC servo control
--Energy storage type braking
--Straight knife structure
--Oil-immersed gear transmission
--10.4-inch touch screen display
10
LS Sheet Delivery Machine
1 ;;200mm
--Electrical adjust the size of cardboard
--Cardboard transverse output controlled by pneumatic;
--Max stacking height 200mm
11
Glue Making System
1 ;,,,,
--Customers supply the pipeline
--The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump
12
Internal Steam System
1 :,,,;
--Steam system components adopt GB valve: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc
--Boiler and pipeline supply by customer
Notes:(This price isn't included the installation charge)
2. Delivery: 120-150days after receiving the deposit
3. Payment: 30% down payment by T/T and 70% by T/T before shipment
4.Installation and training: Buyer need to be bound for the round trip flight tickets, cost for accommodation,and each engineer for $300 USD/day for salary)
5. Guarantee: 12 months
