Small Scale Potato Chips Production Line

Product Description

Product Description
Product Description
Small Scale Potato Chips Production Line
Product Application
Dession Multi head weigher packaging machine, It is suitable to use in packing the high accuracy and easy fragile material and bulk objects, such as: puffy food, cryspy rice, jelly,candy, pistachio, nuts, fruit slices, dumpling, chocolate, medicine, pet food, small hardwares and so on.

SPECIFICATIONS FOR PACKING MACHINE
Model	DS-420L
Film Width	Max.420mm
Bag Length	80-300mm
Bag Width	60-200mm
Filling Range	150-1500ml
Roll Diameter	Max.320mm
Packing Speed	5-60 Bags/min
Machine Size	(L)1217* (W)1015*(H)1343mm
Machine Weight	650KG
Power	220V,50/60/HZ,2.2KVA

Don't wait up ! Contact me get more machine detail

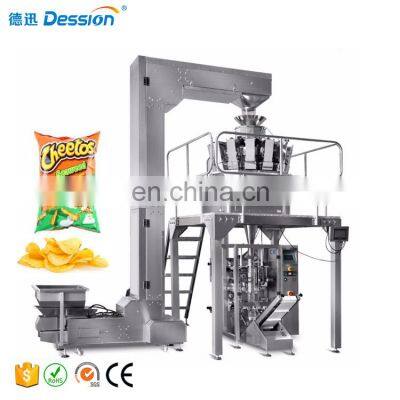

Full Set Packing Machine Outlooking:
Main Features
1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Detailed Parts
Machine Main Parts
Name: Multi Heads Weigher
It is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component
Machine Main Parts
Name: Vertical packing machine
Digital screen display with numerical setting and flexible operation;Imported PLC control system and color touching screen, easy operation;PID independent control of temperature, more suitable for different packaging material
Machine Optional Parts
Name: Z Type Elevator
Available for lifting of frangible and non-frangible material such as fried chips, prawn cracker, crispy rice, metals and medicines, etc.
Machine Optional Parts
Name: Supporting Platform
Adopting imported miniature motor and featured with low noise and long tifetime. It can transport finished goods to platform, reduce waste during packing, making the machine work more smoothly.
Machine Optional Parts
Name:Finished Product Conveyor
Adopting imported miniature motor and featured with low noise and long tifetime. It can transport finished goods to platform, reduce waste during packing, making the machine work more smoothly.
You May Also Like
Multi Function Weigher Packing Machine
Apply: Puffed food , Crispy rice, fruit ,chips ,chocolate ,hareware,Frozen Food, medicines etc.
Powder Packing Machine
Apply: All kind of powder material ,such as: Flour , Milk Powder, Coffee Powder ,Chocolate Powder.
Liquid Packing Machine
Apply: Laundary detergent ,Stuffing ,Sauces, Pesticide emulsion, Dyes , Pigments etc.
Flow Pack Packing Machine
Apply: Biscuits ,Rice tong, Snow cake, snack food, Chocolate, Bread, Instant noodles, Industiral parts etc.
Premade zipper bag Packing Machine
Apply: stand up bags, handbags, zipper bags, four sides sealed bags, three sides sealed bags, paper bags etc.
Granule Packing Machine
Apply: Packaging various kinds of granules, such as Rice ,Sugar, Soybean etc.
Our Company
Foshan Dession Packaging Machinery Co.,Ltd is located in nanhai district, foshan,It is a collection of research, production, sales and after-sales service as one of the production-oriented enterprises.Machines are widely used in food, articles for daily use, hardware industrial products, medical supplies, hotel one-time items, etc. Along with the continuous development of science and technology, the level of automatic packing machinel is higher, scope will be wider.
Certification
Our Service
*Pre-Sales Service
1.Inquiry and consulting support,professional packing solution for free.
2.Machine videos for your reference.
3.Sample testing support.
4.View our Factory.
*After-sale Service
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. DEssion engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have 1 year warranty of machine,2 years warranty of electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
Our Clients:
During last 10 years, Dession has developed more than 30 partners all over the world ,
Dession automatic packaging machine has been shipped to many countries and area such as America, Brazil, Russia, British, Germany, India, Thailand, Malaysia, Vietnam and so on.
Customers Feedback:
Packing & Delivery

Packaging (Using plywood case)
CBM	9.2M3
Gross Weight	1250KG( Five Parts)
Packaging Details	1)Dedust & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules into Plywood Cases 6)Mark Shipping Mark In The Cases If any special requirements, we will pack it as requested.

FAQ
For any Questions
1. Q : Can your machine meet our needs well, how to choose the proper settings ?
A : Dear, before quoting, please kindly consult us and providing:
1.The packaging pruduct name;
2.Packaging bag size(Length/Width) or the weight of each packaging bag;
3. Pacaging speed;
4.Bag types showing above or your own design;
it will be more easier for us to recommend the most suitable packing machine for you to make your cost to the minimum.
2. Q: Do you have manual or operation video for us to know more about the machine?
A : Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
3. Q: How can I trust you for the first time business ?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Trade Assurance service. it will protect your money during the whole stage of transaction.
4. Q: Can you explain me the whole transaction process ?
A: Both sides reached cooperation intention -
---- Signed the Contract
---- Arrange the deposit to factory
---- Factory arrange production
---- Testing&detecting the machine before shipping
---- Inspection by customer or third agent or through online
---- Arrange the balance payment
---- Confirm the shipping details then delivery
Guild customer setting after machine arrived.
5.Q: How do we contact you?
A: There is a contact information in the bottom of this page. Please leave massage and click "send". you also can contact us through Email, wechat, viber, skype, whatsapp, QQ, Line, phone and etc.
Further information (video,pictures, technical parameter and other models) needed,pls feel
free to let us know.
Contact
Don't wait up ! Contact me to get more detail and best price !
WE TRUST YOU WILL LIKE OUR QUALITY AND PRICE!!!
Mr.Sidney Shao
Foshan Dession Packaging Machinery Co., Ltd.
Mobile/whatsapp/wechat: +86 133 7757 1797
Fax: 0086 75786087051
