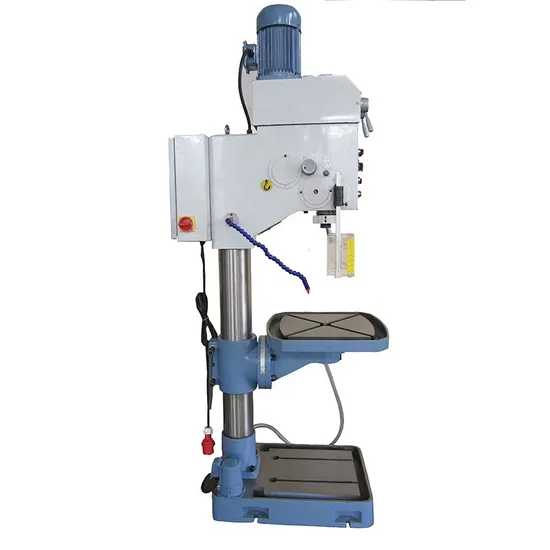

Precision Vertical Drilling Machine Z5050 with Movable Table Senmo Weida Wddm 50mm

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
Z5050
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Spindle Travel
210mm
Distance Spindle Center to Column Surfac
375mm
Max.Distance Spindle Nose to Worktable
80-800mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900

Product Description

Vertical Drilling Machine Z5050 Feature
·Drilling, tapping, boring, reaming
·Gear driving and strong cutting power
·2 speed strong power motor, wide range speed change
·Electric system according to IEC standard, equipped with short cut and overload protection
·Automatic tools ejectors, equipped with cooling system and tapping mechanism
·2 steps power feed 0.1-0.2mm/rev
·Working table can be rotated 180° and can be tilted 45°

Specifications Z5050
Max.drilling and tapping capacity Ø50/M33mm
Spindle travel 210mm
Distance spindle center to column surface 375mm
Max.distance spindle nose to worktable 80-800mm
Distance spindle nose to base 1325mm
Spindle taper MT4
Spindle feed range 0.1,0.2,0.3,0.4mm/r
Spindle speeds range 55-1450rpm
Spindle speed steps 18
Diameter of column 180mm
Worktable size 580x580mm
Dimensions of base 860x580mm
Cooling pump 75kw
Motor power 3kw
Packing size(LxWxH) 59x90x225cm
N.W/G.W 760/860kg
20' container Q'ty 18sets

Standard Accessories Optional Accessories
Draw bar L-type table
Adapter Worktable auto up-down system
Taper shank for drilling chuck Depth indicator
Drilling chuck Vice
Tilted wedge
Spanner
Oil gun


Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
