High Temperature Resistance Easy Cleaning Chemistry Magnetic Stirrer Hoplate (RT-280)

US$180.00-210.00 1 Piece (MOQ)

Basic Info.

Model NO.
MS-H280-Pro
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API, CE, ISO
Condition
New
Speed Range
200-1500rpm
Stirring Type
Diving
Working
High Speed Mixer
Customized
Customized
Structure
Desktop
Material
Stainless Steel
Type
Hot Plate
Work Plate Dimension
135mm(5 Inch)
Work Plate Material
Stainless Steel Cover with Ceramic
Motor Type
Brushless DC Motor
Motor Rating Input
5W
Motor Rating Output
3W
Power
515W
Heating Output
500W
Max. Stirring Quantity[H2O]
3000ml
Stirring Positions
1
Max. Magnetic Bar[Length]
50mm
Heating Temperature Range
Room Temp.-280, Increment 1 Degree
Over Heat Protection
320degree
External Temperature Sensor
PT1000
Mixer Type
Agitator
Layout Type
Horizontal
Mixing Drum Shape
Disc
Operating type
Continuous Operating
Warranty
One-Year
Transport Package
Hard Carton Packing
Specification
3L
Trademark
TOPTION
Origin
China
HS Code
8479820090
Production Capacity
30000PCS/Year

Product Description

Product Description

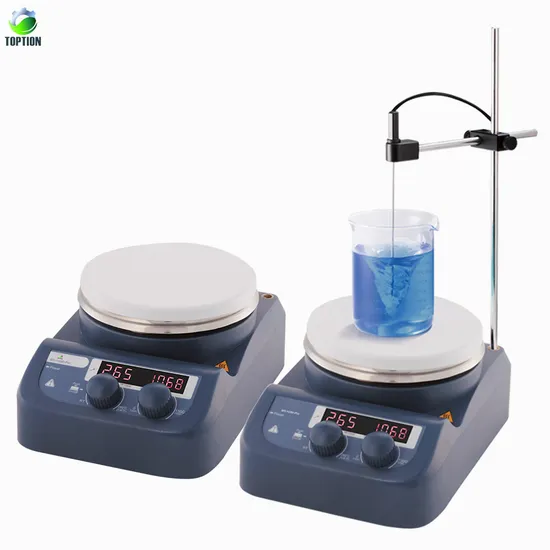

Laboratory Magnetic Stirrer LED Display, 3L Magnetic Stirring

Product Parameters
Specifications MS-H280-Pro
Work plate Dimension φ135mm(5 inch)
Work plate material stainless steel cover with ceramic
Motor type Brushless DC motor
Motor rating input 5W
Motor rating output 3W
Power 515W
Heating output 500W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 3L
Max. magnetic bar[length] 50mm
Speed range 200-1500rpm
Speed display LED
Temperature display LED
Speed display resolution ±1rpm
Heating temperature range Room temp.-280, increment 1°C
Control accuracy of work plate ±1°C(<100°C) ±1%(>100°C)
Over heat Protection 320°C
Temperature display accuracy ±1°C
External temperature sensor PT1000 (accuracy ±0.5°C)
"Hot" warning 50°C
Protection class IP21
Dimension [W x D x H] 150×260×80mm
Weight 1.8kg
Permissible ambient temperature and humidity
 5-40ºC 80%RH

Detailed Photos
• Digital temperature control with max. temperature up to 280°C
• Digital speed control with max. speed up to 1500rpm
• Stainless steel work plate with ceramic coating provides good chemical resistant performance
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C
• LED display shows temperature and speed
• The "HOT" warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
