Aatcc127 Lab Textile Fabric Water Hydrostatic Pressure Resisitance Testing Tester

Product Description

Aatcc 127 ISO 811 Hydrostatic Head Pressure Tester for Fabric Non Woven Textile
Product Description
Product introduction:
This tester is suitable for measuring the water resistance of fabrics when hydrostatic pressure is applied to the fabrics in a fixed period. Hydrostatic pressure test method for testing tight fabrics (such as canvas, tarpaulin, sheet cloth, tent cloth, rainproof clothing cloth, polymer materials, etc.) and coated fabrics against water seepage.
Working principle:
The resistance that water encounters through the fabric is expressed in terms of the hydrostatic pressure that the fabric is subjected to. Under standard atmospheric conditions, one side of the specimen is subjected to a continuously rising water pressure until water seeps in three places, and the pressure is recorded over time.
Pressurized method:
The surface water pressure of the fabric is used to represent the negative force encountered by water passing through the fabric. Under standard atmospheric pressure conditions, one side of the sample is subjected to a continuously rising water pressure until there are three still waters, and the pressure at this time is recorded. .
Holding pressure method:
Under the specified conditions, one side of the coated fabric sample to be tested is subjected to continuously rising water pressure until the specified water pressure value is reached. Observe whether penetration occurs for a specified time or continue to pressurize until penetration occurs.
Features:
1. Control system: Omron PLC+touch screen control
2. Range: ordinary hydrostatic pressure of 20--30 meters, high pressure of 60 meters of water column, and a maximum of 100 meters of water column pressure can be customized.
3. Accuracy: the highest accuracy in China, the high pressure can reach the centimeter level control accuracy, and the pressure accuracy of 5mm can generally be achieved.
4. Control: The test process is programmable, and an action can be repeated many times. The test can be programmed according to any standard requirements, and the test water temperature can reach any standard required temperature.
5. Standard: meet the requirements of any hydrostatic pressure test standard (the premise of suitable model selection in our company)
Compliant with standards: ISO 811/1420, BS EN 20811/3321/3324 DIN 53886 AFNOR GO7-057 ERT 120-1, 160-0 AATCC 127 GB/T 4744 FZ/T 01004 and other hydrostatic test standards
Product Parameters

Test area	100cm^2 (that is, the inner diameter of the upper platen is 113mm)
Water pressure rising speed	1kPa(10cmH2O)/min, 6kPa(60cmH2O)/min, Max.99 can be set
Maximum pressure	600kPa (6000cmH2O)
Control method	microcomputer single chip control
Test mode	pressurized mode/sustained pressure mode
Resolution	20000:1
Test temperature	room temperature ~ 95 ºC can be set
Data collection speed	500 times/s
Sample size	round sample with diameter of 130mm~200mm or square sample with side length of 200mm
Number of samples	5 pieces
Volume (WxDxH)	66x55x90cm
Weight	160Kg
Power supply	1∮ AC 220V 50Hz 3A

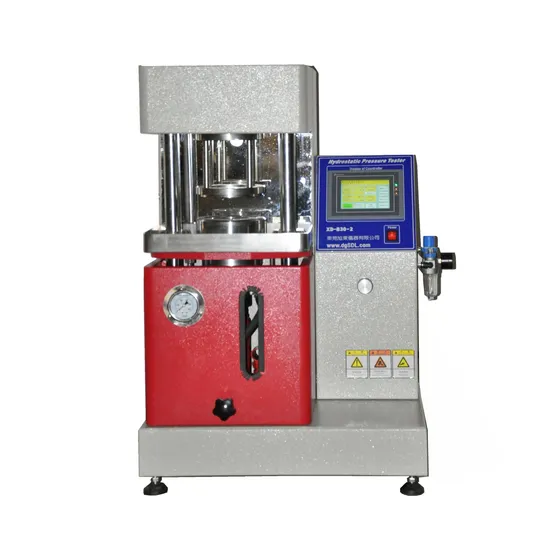

Detailed Photos
Dongguan Astrand Electronic Technology Co., Ltd, with its own brand--ASTRAND, has been dedicating in providing professional testing equipment with top quality since its establishment in 2007. It owns sophisticated and advanced technology in producing Fabric Textile machine, Shoes/Footwear Testing Equipment, Paper and Paperboard Testing Equipment, Environmental test chamber, Universal Tensile Strength Testing Equipment and so on. Products made by ASTRAND reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, TAPPI, AATCC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, aviation, etc.

---
