Hydraulic Transmission KME12U 3070x2323x850mm Shandong Crawler Mini Excavator Bucket

Product Description

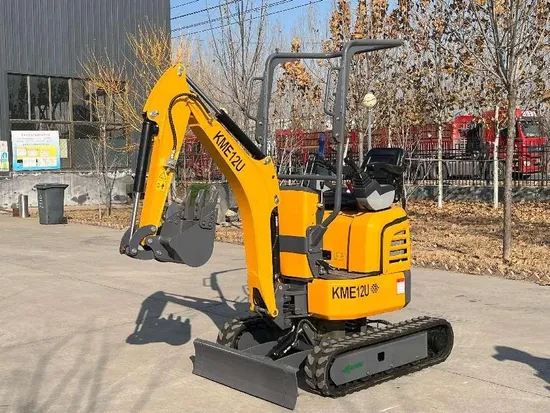

KME12U Mini Excavator
Excavator engine:YANMARExcavator dimension:3070x2323x850mm
Excavator weight:1200KG
Excavator Bucket capacity:0.03m³
Description

KME12U
Type of cab		Canopy
Bucket capacity		m3	0.03
Machine weight		kg	1200
Dimensions	Overall length	mm	3070
	Overall height	mm	2323
	Overall width	mm	850/1100
	Ground clearance	mm	130
	Tail swing radius	mm	550
Engine	Brand	YANMAR
	Model	3TNV70
	Displacement	L	0.854
	Output	kW/rpm	10/2200
Working ranges	Max Digging height	mm	3062
	Max Dumping height	mm	2075
	Max digging depth	mm	1830
	Max digging distance	mm	3542
	Max digging force (Arm)	KN	6.5
	Max digging force (Bucket)	KN	11
Track	Type		Rubber track
	Rubber shoe width	mm	180
	Track length	mm	1404
	Track grounding length	mm	1080
	Track gauge	mm	670/920
	Track width	mm	850/1100
	Grade ability		58%/30°
Boom deflection angle left/right			50°/70°
Traveling speed		km/h	1.3/2.5
Swing speed		rpm	10
Ground pressure		kpa	31
Hydraulic pumps	Flow rate	L/min	19.2
	Hydraulic pressure	Mpa	18
Fuel tank capacity		L	13
Hydraulic oil tank capacity		L	13

Detailed Photos


Company Profile
Linyi Kima Machinery CO.,LTD is a professional manufacturer of wheel loaders and excavators in China.
Our leading products include 0.6 to 3-ton wheel loaders and mini excavators. Most of the products have passed the following certificates: ROPS&FOPS, CE , TUV.
Now our machines have a good market in Australia, South America, Argentina, Canada, Germany, Norway, Finland, Sweden, Netherlands, Poland, Russia, etc.
After Sales Service
1. We will supply the whole day's online service to foreign customers. 2. Within the warranty period and if the machine parts are damaged under normal using conditions, we will offer free new ones for replacement.3. After the expiry of the warranty, we can renew the contract, which can enjoy the same service as that during the warranty period.
Certification

FAQ:Q1. What Payment terms would you accept? Normally we accept L/C, or /T 30% down payment, balance to be paid against BL copy and loading pictures.
Q2. What is your delivery time? For standard machines, the delivery time is Within 25-35 days after receiving the down payment.
Q3. What services would you offer if I buy from you? Our trained Professional service team offers high-quality, on-time service in a very friendly way. For a good customer
Experience, the content of pre-sales, includes the recommendation on the basis of the right products in physical condition. All you have to do is to inform us of your needs.
Q4. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery.
Q5:What to do if there is a problem with the product? 1. We offer 1 year or 1000-hour running time warranty. 2. We offer technical support for free all the time.
3. We can send the parts to the customers by express delivery as soon as possible.

---
