Plastic Recycling Machine Double Shaft Shredder for all kinds of plastic

US$6,600.00-8,900.00 1 Set (MOQ)

Basic Info.

Model NO.
SP-600
Material Processed
Plastic
Screw
Double-Screw
Automation
Automation
Certification
ISO9001:2008, CE
Chamber Calibre(mm)
600x390
Motor power(kw)
18.5
Rotary cutter shaft diameter(mm)
230
Size of rotating blade(mm)
230x50
Rotating blade(Pcs)
12
Fixed blade(Pcs)
12
Transport Package
Standard Export Packaging
Specification
3100kg
Trademark
MFGSP
Origin
China
HS Code
8477209000
Production Capacity
5000sets/Year

Packaging & Delivery

Package Size
220.00cm * 100.00cm * 180.00cm
Package Gross Weight
3100.000kg

Product Description

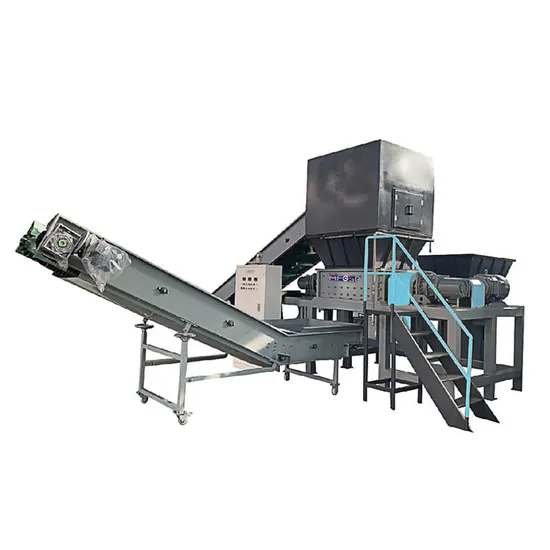

Double shaft shredder

Performance characteristic:
SP series double-shaft shredder are strong and durable. This machine adopts a double-row integrated cutter shaft cross-type structure, and is equipped with mechanisms such as overload protection. It has thecharacteristics of low speed,low noise and large torque.
The blade body of this machine is made of high alloy material, which has thecharacteristics of high strength,goodtoughness, not easy to break and wear resistance,and can ensure sufficientcutting force during work. The machineis equipped with overload protection, when the machine jam occurs during the shredding process, the machine will automatically reverse. This machine is suitable for recycling all kinds of plastic films,tires,plastic containers,plastic barrels and plastic pipes,etc.
Scope of application
Fully automatic production line
Product Parameters
Model SP-400 SP-600 SP-800 SP-1000 SP-1200 SP-1400 SP-1600
Chamber Calibre(mm) 400X370 600X390 805X570 1000X630 1200X760 1400X760 1600X820
Motor power(kw) 7.5 18.5 30 37 55 75 90
Rotary cutter shaft diameter(mm) 190 230 320 350 420 420 500
Size of rotating blade(mm) 190X20 .230X50 320X50 350X50 420X50 420X50 500X50
Rotating blade(PCS) 20 12 16 20 24 28 32
Fixed blade(PCS) 20 12 16 20 24 28 32
Weight(kg) 1800 3100 4000 5200 6800 7500 9000
