US$2,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Function
Waterproof, Fogproof
Usage
Astronomical, Gift, Bird Watching/Hunting, Toy, Long Distance Viewing
Structure
Refractor Telescope
Optical System
Optical System of Infinite Chromatic Aberration Co
Control Time Adjustment
5s-9995s Continuous Adjustment.Default 60s
Transport Package
1PCS Per Carton
Specification
custom as per demand
Production Capacity
10000PCS Per Year
Product Description

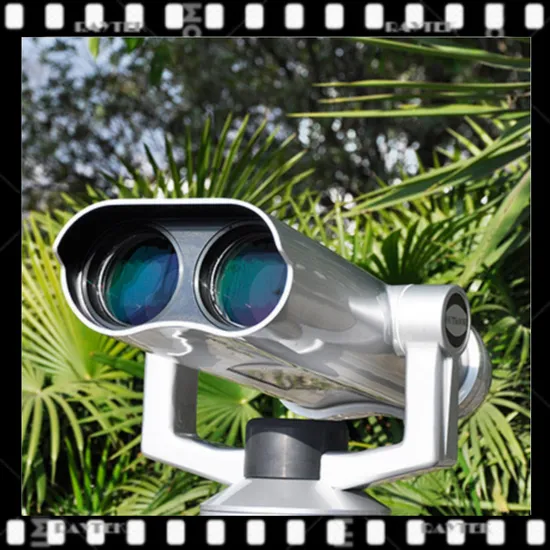

General Introduction: Raytek big telescopes coin operated binoculars is specially designed for the scenic area operation, which fully meets the tourists' needs of long range viewing, is suitable for frequently use by non-professional tourists. big telescopesThe coin operated binoculars works in different climate and environment, and is able to adapt to the ever-changing environment outdoors. This binocular strives to create more value for operators with its simple operation performance, excellent optical performance, stable electrical performance, strong structural performance, innovative design, high cost advantage.
Main Characters:
Simple operation
For non-professional users: the operator can easily install, set up the binoculars, and use the binoculars to create benefits;
the visitors simply put the specified coins, and easily use the telescope to watch the distant scenery.
Excellent optics
It adopts the latest optical imaging system, professional computer optical software to optimize the imaging quality,
so that visitors can get a clear and bright visual experience through the binoculars in different light.
Steady electrical
The latest design of precision integrated circuit timing module, low power design, and the full waterproof design of main control circuit system,
ensures the stability of the electrical system, and greatly reduce the cost of maintenance.
Strong structure
The telescope main engine and the column, the chassis part are all whole metal manufacturing, which greatly adapt to the different environment, are strong and durable.
The 360 degrees rotation mechanism without limit realize the experience of panoramic search.
Innovative appearance
The beautiful, eye-catching, innovative patent design, fashion streamline shape, attracts more attention of visitors, and create more profit for you.
Main Technical Data:
Optical Performance |
Monocular/Binoculars | Binoculars |
Magnification | 25x, |
Exit Pupil | Φ4mm |
Eye Relief | 14mm |
Field of View | 2°30′(45m/1000m) |
Resolution | 2.4″ |
Objective lens diameter | Φ100mm |
Eye Distance | Non-ajustable, 63mm |
Diopter | Fixed focus(infinity-0.75) |
Electrical Device Specifications |
Power Source | DC4.5V(3 pieces of AA battery) |
Continuous standby time | 12 months |
Continuous service time | 3 months(The length of continuous service time depends on the the battery capacity, frequency of use. |
Control time adjustment | 5s-9995s continuous adjustment. The factory default setting is 60 seconds |
Other functions | 1.Time will be automatically accumulated if put in coins continuously. 2.The display function when the battery is under voltage. When the display flashes on the "- -" warning, the battery power is too low. Please replace the new battery. 3.Coin counting function. The number of coins stored in real-time accumulation and won't remove when power off. 4.Recognize different metal coins. When the diameter and thickness of put-in coins is different from the set coin, the coins can not be put in and you can press the refund button and get back the coins. |
Operating Temperature | -15 ºC ~+ 50 ºC |
Mechanism performance |
Horizontal rotation | Unlimited free rotation |
Angle of elevation | ± 30° |
Waterproof | Outdoor waterproof |
Dimension(Binocular body) | 620mm(length)×360mm(width)×260mm(height) |
The total height | 1400mm |
Total net weight | 64-65kg |
Carton Size | Binocular body: 720×400×460 Chassis: 550×550×100 Column: 1200×260×260 |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
>>
