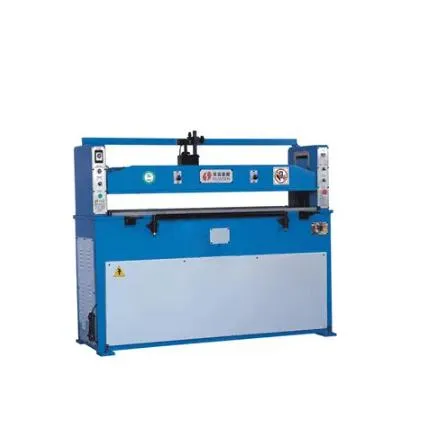

Used Four Column Hydraulic Plane Die Cutting Press Shoe Machinery

US$3,000.00
1-9 Pieces
US$2,900.00
10+ Pieces

Basic Info.

Condition
New
Certification
CE, ISO
Type
Shoes
Automatic Grade
Semiautomatic
Transport Package
Wooden Case
Trademark
Greater
Origin
China
HS Code
84532000
Production Capacity
500set/Year

Product Description


Use: hydraulic plane cutting press is suitable to scissor up leather, plastic, nylon paper carton, sponge and synthetic fibres, in particular, it is suitable to cut single layer ot multi layer broad width materials.
Features:
1) It is suitable to scissor up leather, plaster, nylon, paper, carton, sponge and synthetic fiber, in particular, it is suitable to cut single layer or multilayer broad width materials;
2) Simple and safe operation, scissoring force is strong with fast scissoring speed;
3) Main shaft is equipped with a lubricating system to lessen wear and prolong service life;
4) Knife position can be set simply, and can be adjusted conveniently and quickly;
Model XCLP2-250
Max Cutting Force 25 Tons
Stroke Adjustment 10-90mm
Distance between pressing board and table 50-150mm
Press Board 1600×500mm
Table Area 1600×550mm
Electrical Supply 3x440/415/400/380/220/200V, 50/60 Hz
Motor Power 2.2kw
Packing Size (L×W×H) 2200×1000×1700mm
Weight ( Without Oil ) 1600Kg
Hydraulic oil (46 #) 80 Liters

1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with
machine. If there is still have any question, we will provide free professinal guide for you until you
could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales
service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price send to you.
