US$16,000.00-29,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Automatic Grade
Automatic
Certification
CE, ISO 9001
Machine Type
CNC Duplex Milling Machine
Higher Precision
About 2D-2μ;3D-5μ
Key Selling Points
Easy to Operate
Machinery Test Report
Provided
Applicable Industries
Precision Mold, Ultra-Precision Parts
Transport Package
Non-Fumigation Plywood Case
Specification
Customizable
Production Capacity
15000 Units Per Year
Product Description
Product Description

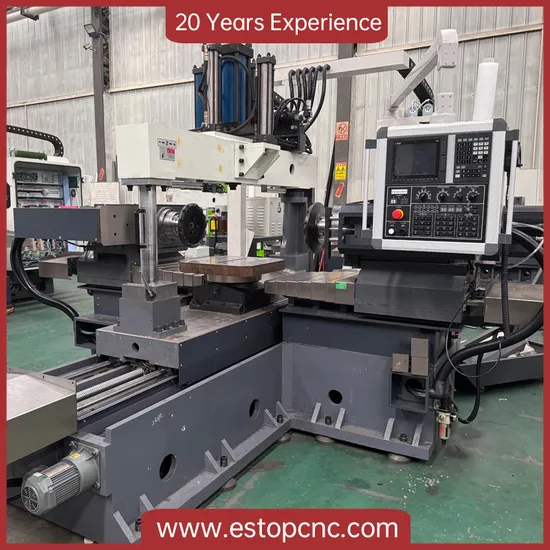

Estop Siemens System Automatic Tool Changer Twin Head Cnc Milling Machine
The ES-TOP series of duplex milling machines make it simple to machine precision angles and dimensions on blocks and plates for any application.
-Easy to use input screen for parameters.
-Once the cycle is complete, the clamps retract and the finished part can be removed and replaced with the next.
-Continuously summarize and improve through long-term operational practice, develop and improve various functions, make it easier to operate, safer and faster.
Product Details |
| |
The TH Series duplex milling machines are not only fast and easy to use,but also maintain high preciszionfor dimension,squareness and parallelism. |
| |
Easy conversational operating system |
| |
More Products:
Product Parameters
Product Parameters:
Specifications of TWIN-HEAD CNC MILLING MACHINE TH-850NC |
Items | Name | Specification |
TWIN-HEAD CNC MILLING MACHINE TH-850NC | TH-850NC |
Cutting capacity | Control axis number | 4 |
Cutting capacity mm | 2*3.0 |
Cutting width mm | 60-850 |
Worktable | Dimensions mm | 600*600 |
Max loading weight KG | 2000 |
Spindle | Spindle speed(Infinitely variable speeds) rpm | 50-500 |
Spindle power KW | 2*15 |
Spindle taper | NT50 |
Cutting diameter mm | 250/300 |
X/Y/Z axis | X/Y/Z/A axis motor power | 3/3/3/2 |
X/Y/Z Max feed speed m/min: | 8000/8000/8000 |
X/Y/Z Max cutting speed | 6000/6000/6000 |
Accuracy | Squareness mm/300mm | 0.015 |
Accuracy for dimension mm/300mm | 0.015 |
Tank capacity | Hydraulic oil tank L | 80 |
Lubrication oil tank L | 3 |
Power | Power | AC380V/220 45KVA |
Others | Machine net weight KG | 12500 |
Space M | 4.6*4.2 |
Main part of CNC TWIN HEAD MILLING MACHINE
Sort | Name | Quantity | Origin | Remark |
Machinery | Worktable ball screw | 3 | HIWIN/PMI | steady transmission,High accuracy, wear-proof |
guide rail | 3 | High frequency hardened rail of Quenching | Good bearing, Heavy cutting |
Main Spindle (Horizontal) | 2 | Taiwan POSA | Low noise, high strength, Taiwan famous brand |
Flexible stainless steel plate shield of worktable | 2 | Domestic | High strength, Strong durability, dust-proof, Protect the guide rail and ball screw. |
Base casting | 1 | HT300 | Good stability, excellent wear-ability |
Automatic lubricating machine | 3 | Domestic | Electronic-self-lubrication, Quantitative oil supply to the each part |
Oil line | 3 | Domestic | Copper tube |
Bearing | | NACHI/NTN | World famous brand, High accuracy, High quality |
Electrical appliances | CNC system | 1 | Japan FANUC | Top brand of CNC |
Servo motor | 3 | Japan FANUC | Top brand of CNC |
High precision rotary table | 1 | Taiwan Central Star | Taiwan famous brand, High accuracy |
Spindle motor | 2 | CTB/MK | Multitronic, Meet the requirements of different processing speed |
AC contactor | | | Famous brand, steady property |
Relay | | |
Product Category
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
>>
