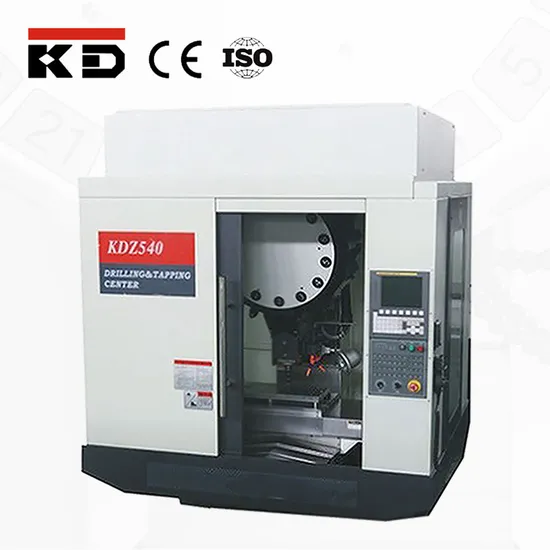

Kd High-End Tools Drilling & Tapping Center

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KDZ540
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
400*600/650mm
Spindle Speed
10000-12000rpm
Spindle Taper Bore
Bt30/95mm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
523 Sets/ Year

Product Description


PRODUCT SPECIFICATIONS
MODELS
KDZ500H
TRAVEL

X axis
500mm
Y axis
400mm
Z axis
330mm
Spindle center to column
430mm
Spindle end to table
150~-480mm
TABLE

Table size
400×650mm
T-slot(width×number×space)
14mm×3×125mm
Max. table loading
250kg
SPINDLE

Taper bore of spindle
BT30/Ф95
Spindle power
3.7/5.5kw
Spindle speed
12000rpm
Cutter removal from spindle
mechanical
FEED

X/Y/Z fast feed
60/ 60/ 60m/min
Torque axis motors
9/ 9/ 12Nm
X/Y/Z motor connection type
Direct connection
ATC

Tool number
16
Max. tool size (With adjacent tool)
Ф60mm
Max. tool size (Without adjacent tool)
Ф80mm
Max. tool weight
3kg
Time (tool-tool)
1.1s
OTHERS

Min. Input
0.001mm
Overall dimension
2390x1580x2380mm
Net weight
2500kg
