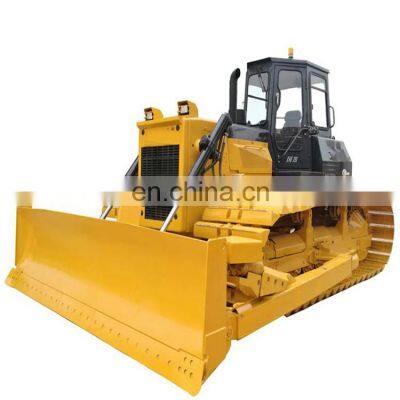

Energy-saving Chinese bulldozer HW crawler bulldozer for HD16 model

Product Description

Product Description
Energy-saving Chinese bulldozer HW crawler bulldozer for HD16 model,
PRODUCT DESCRIPTION
HD16 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and
other characteristic, can adapt for severe working conditions,such as highway, railway, mining, airport construction.
1.Weichai WP10G178E355 engine,features the advantages of robust power, easy maintenance, and high combustion
efficiency.closed cooling system, forced air supply to enhance the cooling effect.
2.The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward.
It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and backwards.
transmission power and high productivity. 3 elements, single stage and single phase torque convertor features high
efficiency and capacity.
3.The rear axle adopts robot welding and numerical control machining technology to ensure the welding strength and sealing
4.The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling
system to transmit the working load and impact load to the main frame during working, which effectively improves the
stability of bulldozers.
5.Hydraulic power steering, which adopts wet, multi-leaf spring compression, hydraulic separation structure, steering
brake adopts hydraulic power, for wet, floating belt type.
6.The electrical system adopts the water-proof type connector and the new type relay injection molding instrument to
guarantee the reliability of the electrical system.
TECHNOLOGY PARAMETER
ItemsHD16
Type160HP Hydraulic standard
Engine modelWeichai WP10G178E355
Displacement9.726 L
Rated power131/1850 kw/rpm
Max.torque830/1000-1200 N.m/rpm
Operating weight17000 Kg
Dimension(no ripper)5140×3388×3032 mm
Min ground clearance405 mm
Ground pressure0.067 MPa
Track gauge1880 mm
Dozing capacity4.55 m³
Blade width3390 mm
Blade height1150 mm
Max drop below ground540 mm
Track shoe width510 mm
Pitch203.2 mm
Quantity of track link37
Quantity of Carrier rollers4
Quantity of Track rollers12
Max pressure14 MPa
Discharge213 L/min
Max tractor force146 KN
Grade ability30°
Gear 1st speed3.29 km/h
Max speed9.63 km/h
Main clutch force145 N
Steering clutch force80 N
Mechnical transmission force112 N
Hydraulic transmission force46 N

PRODUCT REAL PHOTOS
