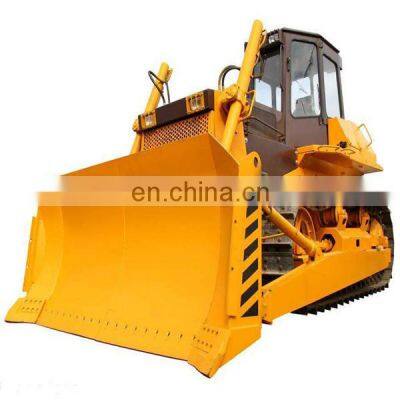

New design energy saving 160HP crawler bulldozer
HW16 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and other characteristic, can adapt for severe working conditions,such as highway, railway, mining, airport construction.
Items
| HW16
|
Main Specifications
|
Model
| HW16
|
Type
| 160HP Hydraulic standard
|
Engine model
| Weichai WP10G178E355
|
Displacement
| 9.726 L
|
Rated power
| 131/1850 kw/rpm
|
Max.torque
| 830/1000-1200 N.m/rpm
|
Operating weight
| 17000 Kg
|
Dimension(no ripper)
| 5140×3388×3032 mm
|
Min ground clearance
| 405 mm
|
Ground pressure
| 0.067 MPa
|
Track gauge
| 1880 mm
|
Dozing capacity
| 4.55 m³
|
Blade width
| 3390 mm
|
Blade height
| 1150 mm
|
Max drop below ground
| 540 mm
|
Track shoe width
| 510 mm
|
Pitch
| 203.2 mm
|
Quantity of track link
| 37
|
Quantity of Carrier rollers
| 4
|
Quantity of Track rollers
| 12
|
Max pressure
| 14 MPa
|
Discharge
| 213 L/min
|
Max tractor force
| 146 KN
|
Grade ability
| 30°
|
Gear 1st speed
| 3.29 km/h
|
Max speed
| 9.63 km/h
|
Main clutch force
| 145 N
|
Steering clutch force
| 80 N
|
Mechnical transmission force
| 112 N
|
Hydraulic transmission force
| 46 N
|
Detailed Images
Weichai WP10G178E355 engine,features the advantages of robust power, easy maintenance, and high combustion efficiency.closed cooling system, forced air supply to enhance the cooling effect.
