Product Description
Product Description

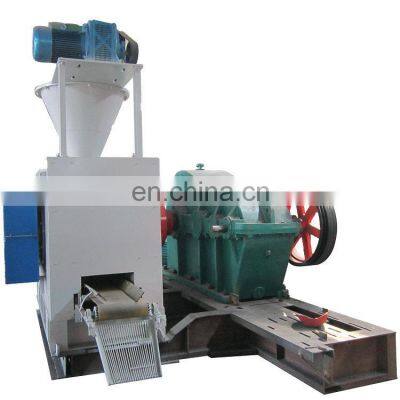

Product DescriptionHigh Pressure briquette machine also named dry powder briquette machine. The high pressure briquette machine mainly applies on the ball making of non-ferrous metal and ferrous metal mineral powder, it enters the furnace directly to increase the additional value. All metallurgy industry waste and accessory that need furnace use ball briquetting machine. Such as dusting ash, pool mud, oxide, slag, iron flavor powder, aluminum ash powder, silicon manganese ore powder, etc. Pressed powder materials into a ball to reduce dust and facilitate transport. Such as iron powder, charcoal, clay, coke breeze, coal, lime powder, etc. Requirements for materials1.Material size about 80 to 200 mesh.2.Materials are not allowed has hard metal objects to avoid damaging the pressure roller.3.Return materials should not have too much clumps(≤3mm), return materials is not more than 50% in the feeding materials.4.Supply of materials must be sufficient, use variable speed screw feeder is better. Technical Parameters ModelYHG-0.5YHG- 1.5YHG-3.0YHG-5.0YHG-8.0YHG-10.0Roller diameter (mm)Φ290Φ367Φ522Φ738Φ760Φ858Roller width (mm)180183196210225300Capacity ( t/h)0.51.2-1.42.5-3.04.5-5.57.5-8.58.0-9.5Main reducerZQ650ZQ850ZS1250ZS1450ZS1650ZS1650Main motor18.537557590-110110-132Pre-pressure Motor(kw)7.5111518.518.522Pre-pressure reducerWHC-125WHC-160WHC-200WHC-210WHC-210WHC-250Remarks1.Above capacity is based on material specific gravity 1.3, briquette size: Φ35*30*20mm.2.Roller material adopts 9Cr2Mo.3.Pre-pressure motor is speed adjustable motor. Principle of workHigh pressure briquette Machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished briquette from powder. Product Show CaseOur Services Company Information FAQQ: How do I choose a suitable briquette machine for my project?A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you requiredQ: Can only one set briquette machine complete briquetting?A: No, before briquetting, the raw materials should be in 0-5mm, the water content of raw materials should be 8-15%, aslo some raw materials maybe need binder in process,so in general the complete briquettes production line include Drying --- Hopper --- Crusher--- Mixer--- Briquette Machine--- Briquette Dryers, but if you had those auxiliary equipment,you can only order briquette machine. Q: What is the binder in process? A: It is depend on the properties of your raw materials, and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.Q: How about the hardness of briquettes? A: Our briquette machine adpot 9Cr2 forging steel to make rollers, with a hydraulic station, the whole pressure is very high, the briquettes will not broken when it drop up from 5meters high. Q: After ordered a briquette machine, how do we slove the equipment installing?A: For a small single machine, we offer you user manual, customer will install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally.Question : What’s the delivery time after I pay the deposit? A: We will clear delivery time in slaes contract, Single often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-paymentContact Us
>>
