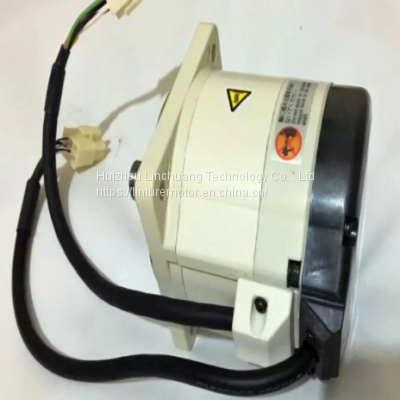

R88G-HPG32A331K0BR OMRON Brushless Industrial DC Servo Motor pattern

Product Details

Product Description

Product Description
Brand:Model:Origin:High Light:

OMRON	R88G-HPG32A331K0B
China
ewing machine servo motor,electric servo motor

OMRON R88G-HPG32A331K0B Decelerator For 1kW Cylindrical Servomotors Backlash Within 3 Minutes Deceleration Ratio 1/33
Backlash: 3 Arcminutes Max.Decelerators for 3,000-r/min Servomotors
Model
(R88G-)Rated
ro-
tation
speedRated
torqueEffi-
cien-
cyMaxi-
mum
mo-
mentary
rotation
speedMaxi-
mum
mo-
men-
tary
torqueDe-
celerator
inertiaAl-
low-
able
radial
loadAl-
low-
able
thrust
loadWeightr/minN·m%r/minN·mkg·m2NNkg50
W1/5HPG11B05100B1/9HPG11B09050B1/21HPG14A21100B1/33HPG14A33050B1/45HPG14A45050B100
W1/5HPG11B05100B1/11HPG14A11100B1/21HPG14A21100B1/33HPG20A33100B1/45HPG20A45100B200
W1/5HPG14A05200B1/11HPG14A11200B1/21HPG20A21200B1/33HPG20A33200B1/45HPG20A45200B400
W1/5HPG14A05400B1/11HPG20A11400B1/21HPG20A21400B1/33HPG32A33400B1/45HPG32A45400B750
W1/5HPG20A05750B1/11HPG20A11750B1/21HPG32A21750B1/33HPG32A33750B1/45HPG32A45750B1
kW1/5HPG32A051K0B1/11HPG32A111K0B1/21HPG32A211K0B1/33HPG32A331K0B1/45HPG50A451K0B1.5
kW1/5HPG32A052K0B1/11HPG32A112K0B1/21HPG32A211K5B1/33HPG50A332K0B1/45HPG50A451K5B2
kW1/5HPG32A052K0B1/11HPG32A112K0B1/21HPG50A212K0B1/33HPG50A332K0B3
kW1/5HPG32A053K0B1/11HPG50A113K0B1/21HPG50A213K0B4
kW1/5HPG32A054K0B1/11HPG50A115K0B5
kW1/5HPG50A055K0B1/11HPG50A115K0B

600	0.50	63	1000	1.42	5.00 × 10-7	135	538	0.29
333	1.12	78	555	3.16	3.00 × 10-7	161	642	0.29
143	2.18	65	238	6.13	5.00 × 10-6	340	1358	1.04
91	3.73	71	151	10.5	4.40 × 10-6	389	1555	1.04
67	5.09	71	111	14.3	4.40 × 10-6	427	1707	1.04
600	1.28	80	1000	3.6	5.00 × 10-7	135	538	0.29
273	2.63	75	454	7.39	6.00 × 10-6	280	1119	1.04
143	5.40	80	238	15.2	5.00 × 10-6	340	1358	1.04
91	6.91	65	151	19.4	6.50 × 10-5	916	3226	2.4
67	9.42	65	111	26.5	6.50 × 10-5	1006	3541	2.4
600	2.49	78	1000	6.93	2.07 × 10-5	221	883	1.02
273	6.01	85	454	16.7	1.93 × 10-5	280	1119	1.09
143	10.2	76	238	28.5	4.90 × 10-5	800	2817	2.9
91	17.0	81	151	47.4	4.50 × 10-5	916	3226	2.9
67	23.2	81	111	64.6	4.50 × 10-5	1006	3541	2.9
600	5.66	87	1000	16.0 (15.7)	2.07 × 10-5	221	883	1.09
273	11.7	82	454	33.1 (32.5)	5.70 × 10-5	659	2320	2.9
143	23.5	86	238	66.5 (65.2)	4.90 × 10-5	800	2547	2.9
91	34.7	81	151	98.2 (96.3)	6.20 × 10-5	1565	6240	7.5
67	47.4	81	111	133.9 (131.4)	6.10 × 10-5	1718	6848	7.5
600	9.94	83	1000	29.2	6.80 × 10-5	520	1832	2.9
273	23.2	88	454	68.1	6.00 × 10-5	659	2320	3.1
143	42.3	84	238	124.3	3.00 × 10-4	1367	5448	7.8
91	69.7	88	151	204.7	2.70 × 10-4	1565	6240	7.8
67	95.0	88	111	279.2	2.70 × 10-4	1718	6848	7.8
600	11.5	72	1000	32.9	3.90 × 10-4	889	3542	7.3
273	28.9	83	454	82.6	3.40 × 10-4	1126	4488	7.8
143	58.1	87	238	166.1	3.00 × 10-4	1367	5488	7.8
91	94.3	90	151	270.0	2.80 × 10-4	1565	6240	7.8
67	124.2	87	100 *1	355.4	4.70 × 10-4	4538	15694	19.0
600	19.1	80	1000	51.3	3.90 × 10-4	889	3542	7.4
273	45.7	87	454	122.5	3.40 × 10-4	1126	4488	7.9
143	90.1	90	238	241.9	3.00 × 10-4	1367	5448	7.9
91	141.5	90	136 *1	379.7	4.80 × 10-4	4135	14300	19.0
67	192.9	90	100 *1	517.8	4.70 × 10-4	4538	15694	19.0
600	26.7	84	1000	77.4	3.90 × 10-4	889	3542	7.4
273	62.4	89	454	180.7	3.40 × 10-4	1126	4488	7.9
143	118.9	89	214 *1	343.9	5.80 × 10-4	3611	12486	19.0
91	191.8	91	136 *1	555.0	4.80 × 10-4	4135	14300	19.0
600	42.0	88	1000	118.9	3.80 × 10-4	889	3542	7.3
273	92.3	88	409 *1	261.4	7.70 × 10-4	2974	10285	19.0
143	183.0	91	214 *1	517.7	5.80 × 10-4	3611	12486	19.0
600	53.9	90	900 *1	163.4	3.80 × 10-4	889	3542	7.9
273	124.6	90	409 *1	359.0	8.80 × 10-4	2974	10285	19.1
600	69.3	88	900 *1	197.8	1.20 × 10-3	2347	8118	17.7
273	158.4	91	409 *1	451.9	8.80 × 10-4	2974	10285	19.1

Note: 1. The values inside parentheses ( ) are for 100-V Servomotors.
Note: 2. The Decelerator inertia is the Servomotor shaft conversion value.
Note: 3. The protective structure for Servomotors with Decelerators satisfies IP44.
Note: 4. The allowable radial load is the value at the T/2 position.
Note: 5. The standard models have a straight shaft. Models with a key and tap are indicated by adding "J" to the end of
the model number (the suffix in the box).

---
